Turning the Machine

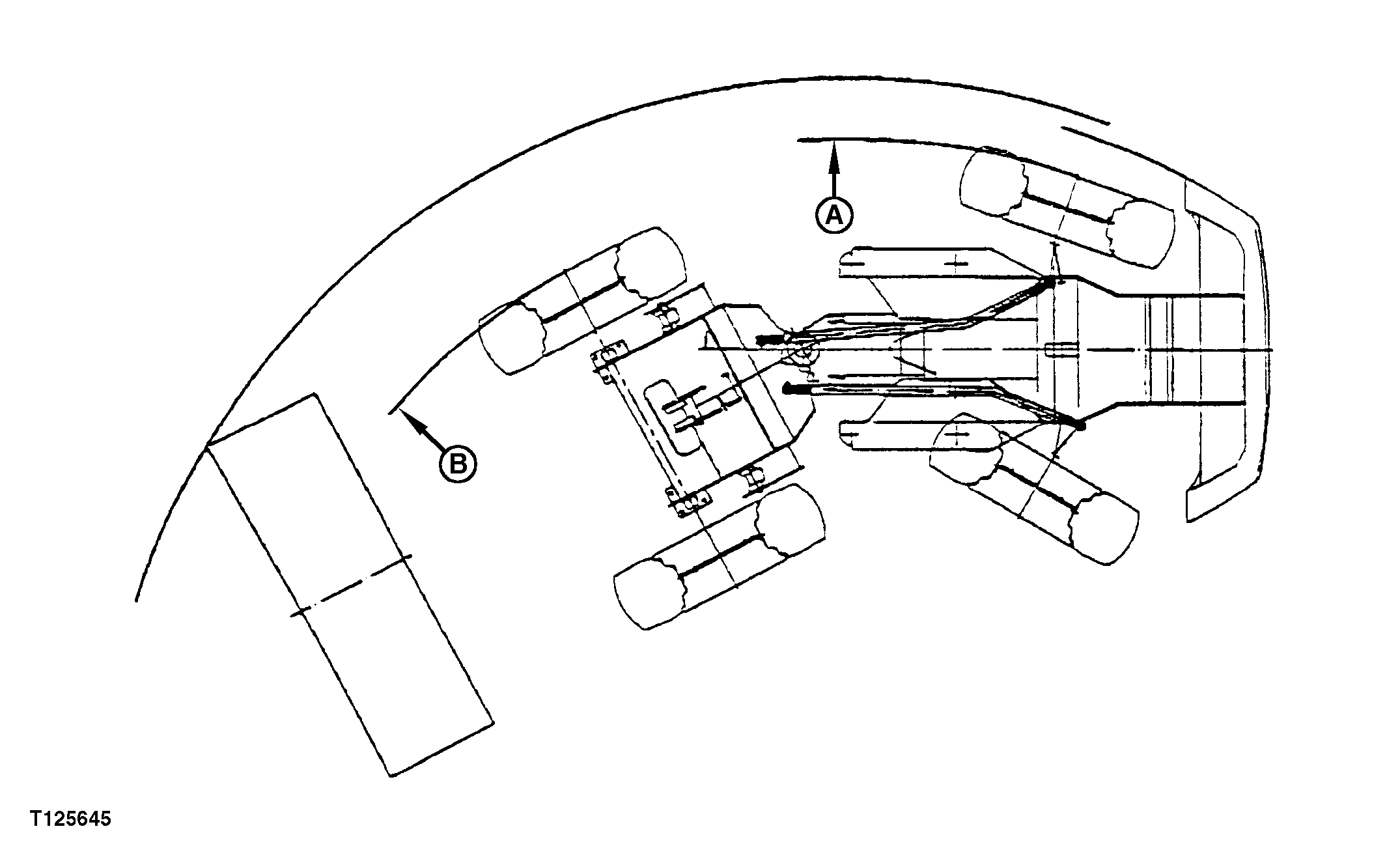

T125645


A-Rear Wheel Track

B-Front Wheel Track



The 324H and 344H have a unique steering system in which the rear wheels do not follow the front wheels. This provides an advantage for a tighter turning radius.

The rear wheel track does not follow the front wheel track. The rear of the machine has a different turning radius.

CED,OUO1002,495 -19-14OCT99-1/1
