Lubricate Gear Case to Front Axle Shaft
 CAUTION:
Prevent possible injury from unexpected machine movement. Never rely on FNR control lever alone to keep machine from moving. Machine can unexpectedly roll or move under power, resulting in death or serious injury. Always turn engine off or push park brake switch to ON to hold machine.
Apply two shots of low pressure grease to each point on U-joints. (See Fuels and Lubricants chapter.)
|

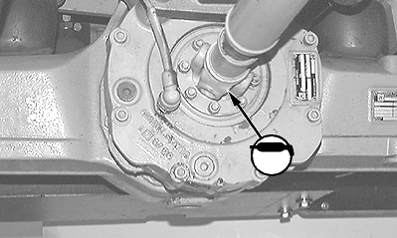

Rear U-Joint (One Point)-344H (S.N. -710243) Shown

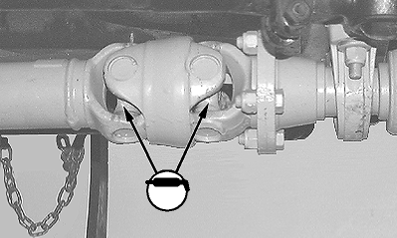

Middle U-Joint (Two Points)

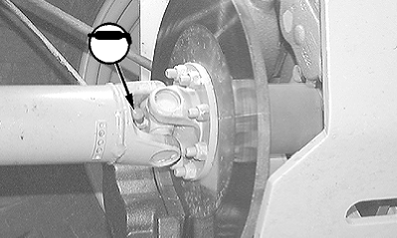

Front U-Joint (One Point)
|
