Replace Cab Air Filter

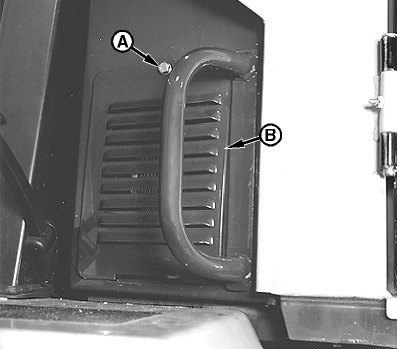

1. Remove cap screw (A) and filter cover (B).

NOTE: Access to the cab air filter is located outside on left rear corner of cab.

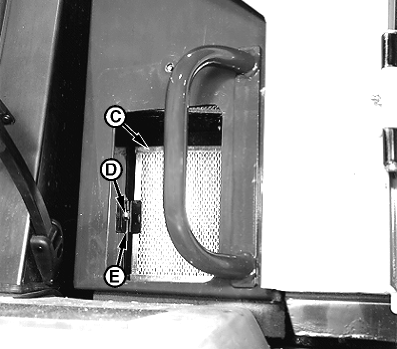

2. Remove cap screw (D), bracket (E), and air filter (C).

3. Install filter (C), bracket (E), and cap screw (D).

4. Install filter cover.

5. Install cap screw and tighten.


A-Filter Cover Cap Screw
B-Filter Cover
C-Air Filter
D-Filter Mounting Screw
E-Filter Bracket

T113135
T113136

CED,OUO1002,509 -19-04MAR98-1/1
