Bleeding Fuel System

1. Open air bleed vent screw (A) two full turns by hand.

2. Pump the hand primer (B) on fuel pump until a noticeable amount of fuel and air comes out of vent opening. Continue pumping and close vent screw when fuel starts to flow.

3. Pump the hand primer several times until resistance is felt. Continue pumping and open air bleed vent screw again.

4. Close air bleed vent screw and pump the hand primer several times until resistance is felt again.

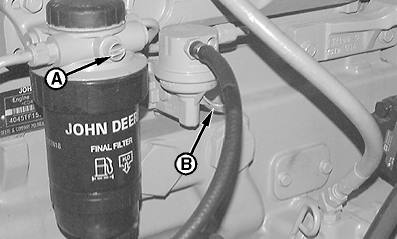

T113375


A-Bleed Screw
B-Hand Primer

CED,OUO1002,512 -19-04MAR98-1/1
