Service Recommendations For Non-Restricted Banjo (Adjustable) Fittings

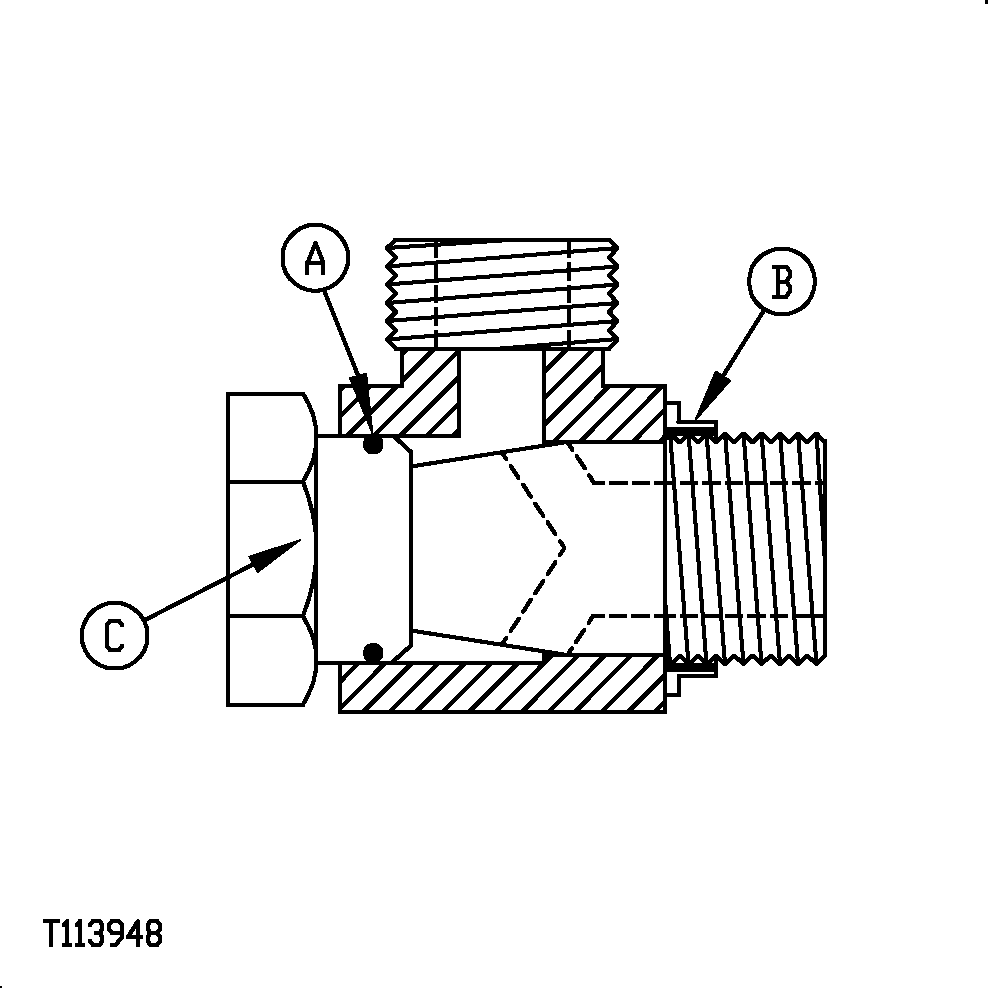

1. Inspect all fitting sealing surfaces. They must be free of dirt and defects.

2. Inspect O-ring (A). It must be free of damage or defects.

3. Inspect sealing ring (B) for damage or defects.

4. Hold body in desired position while tightening stud by hand.

5. Tighten stud (C) to torque value shown on the chart. Do not allow body to twist when tightening stud.

NOTE: The L in the Tube Fitting OD Size column indicates "light" designed fitting and the S indicates "heavy" designed fitting.

  Torque Value
Tube Fitting O.D. Size Metric Thread N·m lb-ft
6 L M 10 x 1 30 22
8 L M 12 x 1.5 40 30
10 L M 14 x 1.5 60 44
12 L M 16 x 1.5 100 74
15 L M 18 x 1.5 130 96
18 L M 22 x 1.5 160 118
22 L M 26 x 1.5 250 184
28 L M 33 x 2 400 295
35 L M 42 x 2 600 443
42 L M48 x 2 800 590
6 S M 12 x 1.5 40 30
8 S M 14 x 1.5 60 44
10 S M 16 x 1.5 100 74
12 S M 18 x 1.5 130 96
14 S M 20 x 1.5 160 118
16 S M 22 x 1.5 160 118
20 S M 27 x 2 250 184
25 S M 33 x 2 400 295
30 S M 42 x 2 600 443
38 S M 48 x 2 800 590


T113948

CED,OUO1002,562 -19-09MAR98-1/2

  Torque Value
Tube Fitting O.D. Size Inch Size N·m lb-ft
6 L 1/8 25 18
8 L 1/4 50 37
10 L 1/4 50 37
12 L 3/8 90 66
15 L 1/2 130 96
18 L 1/2 150 111
22 L 3/4 250 184
28 L 1 400 295
35 L 1-1/4 600 443
42 L 1-1/2 800 590
6 S 1/4 50 37
8 S 1/4 50 37
10 S 3/8 90 66
12 S 3/8 100 74
14 S 1/2 130 96
16 S 1/2 150 111
20 S 3/4 250 184
25 S 1 400 295
30 S 1-1/4 600 443
38 S 1-1/2 800 590



CED,OUO1002,562 -19-09MAR98-2/2
