Starting Fluid (Cold Weather Starting Aid)-If Equipped

USE STARTING FLUID

causym CAUTION: Prevent possible injury from exploding container. Starting fluid is highly flammable. Keep container away from heat, sparks, and open flame. Contents are pressurized. DO NOT puncture or incinerate container. Remove container from machine if engine does not need starting fluid.

IMPORTANT: Prevent damage to engine. Use starting aid when temperatures are below 4°C (40°F) and only when engine is COLD.

1. Turn key switch clockwise to START position.

TS281

CED,OUO1002,574 -19-11MAR98-1/2

IMPORTANT: Excess starting fluid could damage engine; press starting aid button only when engine is cold and cranking. Start aid fluid is being injected into engine as long as you press button.

2. After one or two revolutions of engine crankshaft, press start aid switch (A) until engine starts. Crank engine for 20 seconds maximum, then allow 2 minutes between cranking periods.

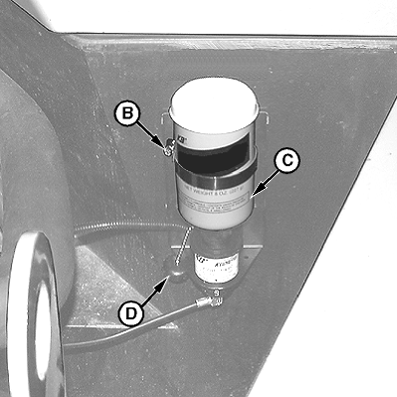

REPLACING START AID CONTAINER

1. Loosen hose clamp (B).

2. Turn start aid container (C) counterclockwise to remove.

3. Remove safety cap from new container.

4. Turn container clockwise in starting aid base to install.

5. Tighten hose clamp.

OPERATING MACHINE WITHOUT START AID CONTAINER INSTALLED

IMPORTANT: Protect starting aid components from possible damage. Install starting aid plug in starting aid base.

Remove container from base and install plug (D) in base.

T113952
T113822


A-Start Aid Switch
B-Hose Clamp
C-Start Aid Container
D-Plug

CED,OUO1002,574 -19-11MAR98-2/2
