Air Conditioner-If Equipped

NOTE: Blower must be on for air conditioner to function.

1. Turn blower knob (B) to desired fan speed.

2. Turn air conditioner control knob (C) clockwise to turn air conditioner on.

3. Adjust temperature using temperature control knob (A).

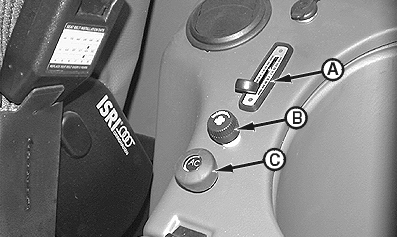

A-Temperature Control Knob
B-Blower Knob
C-Air Conditioner Control Knob

CED,OUO1032,2788 -19-08NOV99-1/1
