Change Rear Differential and Gear Case Oil-324H Loader

NOTE: Park machine on level ground.

1. Remove drain plugs (A and B). Allow oil to drain into container. Dispose of waste properly.

2. Remove fill plug (D). Slowly add oil until oil is to bottom of plugs (C and D).

3. Install drain plugs.

4. Install fill plugs.

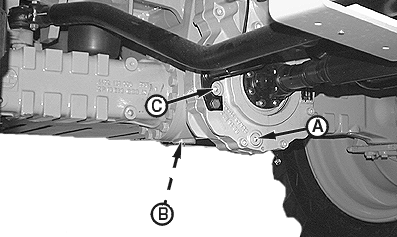

A-Gear Case Drain Plug
B-Axle Drain Plug
C-Gear Case Oil Level Plug

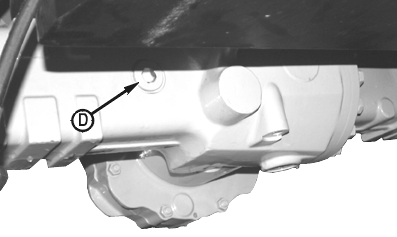

D-Axle Fill Plug

CED,OUO1032,2791 -19-08NOV99-1/1
