Check Receiver/Dryer Moisture Indicator-If Equipped

IMPORTANT: Prevent possible compressor damage. If receiver/dryer moisture eye color indicates "WET" (pink), dryer is saturated and should be changed within the next 100 machine hours to prevent further buildup of moisture in the refrigerant.

1. Remove grommet (A) from air conditioner housing.

2. Check moisture indicator (B) to see if color indicates dryer is serviceable (blue) or should be discarded (pink).

3. To replace, see your authorized dealer within the next 100 machine hours.

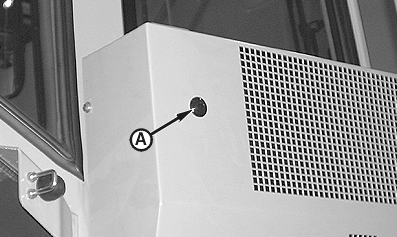

A-Receiver/Dryer Grommet

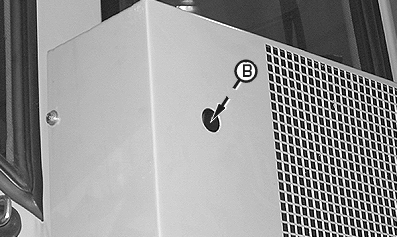

B-Moisture Indicator

CED,OUO1032,2792 -19-11NOV99-1/1
