Check Rear Differential and Gearcase Oil Level

NOTE: Park machine on level ground.

1. Remove plug (A). Oil must be to bottom of fill plug hole. Add oil if necessary. (See Fuels and Lubricants chapter.)

2. Install plug.


A-Plug

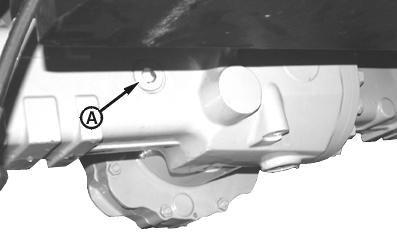

T126261B

324H Shown

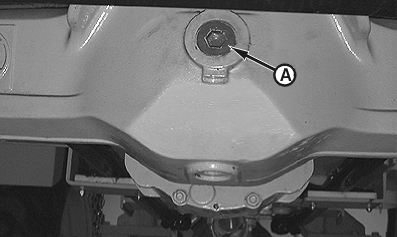

T126259B

344H Shown

CED,OUO1032,2800 -19-29NOV99-1/1
