Check Front Differential Oil Level

NOTE: Park machine on level ground.

1. Remove plug (A). Oil must be to bottom of fill plug hole. Add oil if necessary. (See Fuels and Lubricants chapter.)

2. Install fill plug.

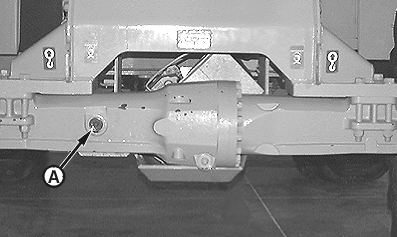

A-Fill Plug

T126260B

CED,OUO1032,2801 -19-29NOV99-1/1
