344H Specifications

T125007
T113710

CED,OUO1032,2803 -19-29NOV99-1/3

NOTE: Specifications and design subject to change without notice. Wherever applicable, specifications are in accordance with SAE standards. Except where otherwise noted, specifications are based on a machine equipped with all standard equipment, ROPS cab, limited slip differential lock front axle and standard rear axle, 2 spool valve with two

lever control, heater and defroster, 79 kg (175 lb) operator and full fuel tank.

344H Loader Specifications

NOTE: All machine measurements are with 17.5-25 12 PR tires and with 1.3 m 3 (1.75 cu yd) bucket.

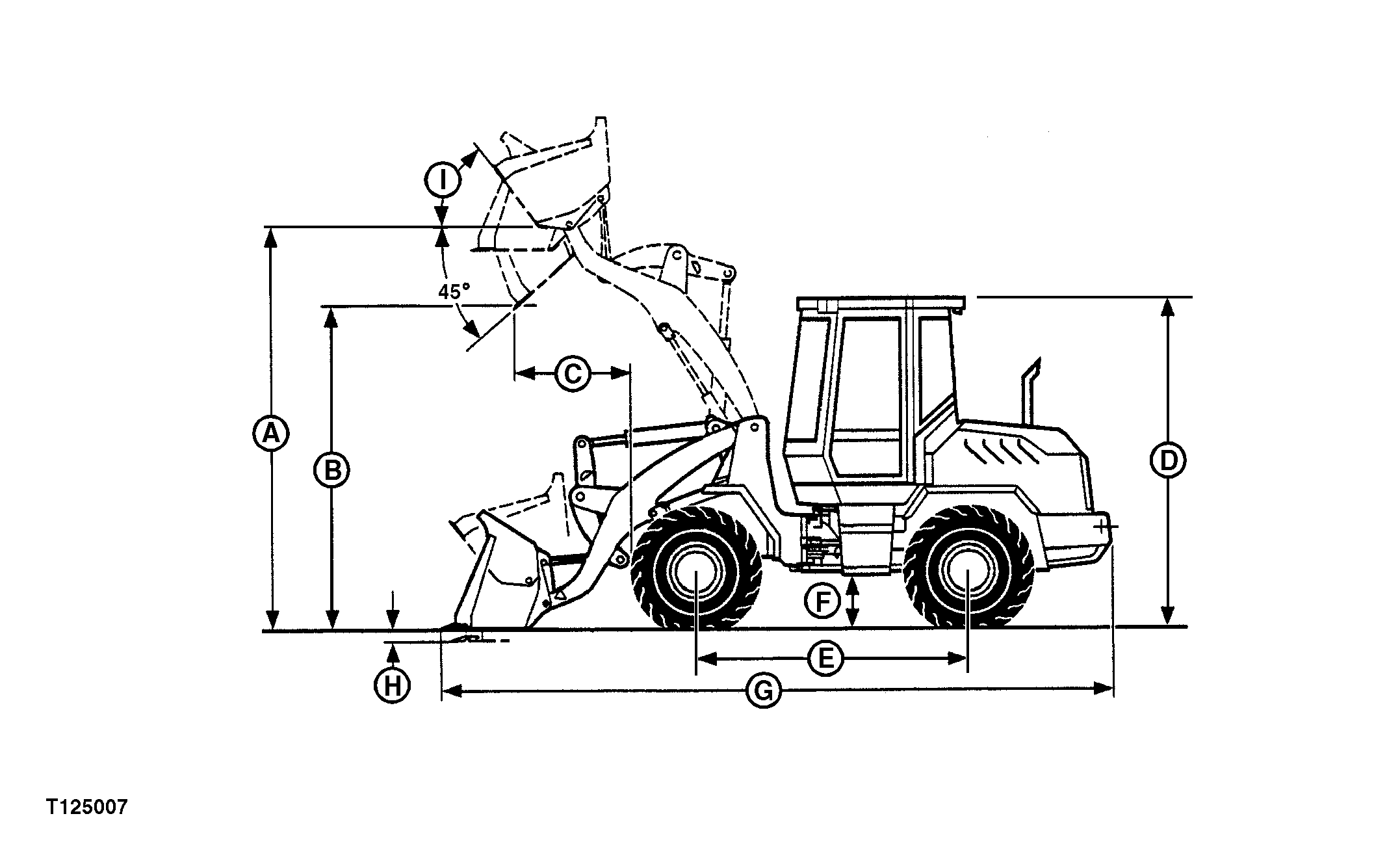

A-Bucket hinge height 3680 mm (12 ft 1 in.)
B-Dump height 2847 mm (9 ft 4 in.)
C-Dump reach 795 mm (2 ft 8 in.)
D-Overall height 3048 mm (10 ft 0 in.)
E-Wheelbase 2600 mm (8 ft 6 in.)
F-Ground clearance 378 mm (14.9 in.)
G-Overall length 6325 mm (20 ft 9 in.)
H-Digging depth 77 mm (3 in.)
I-Bucket curl 63°

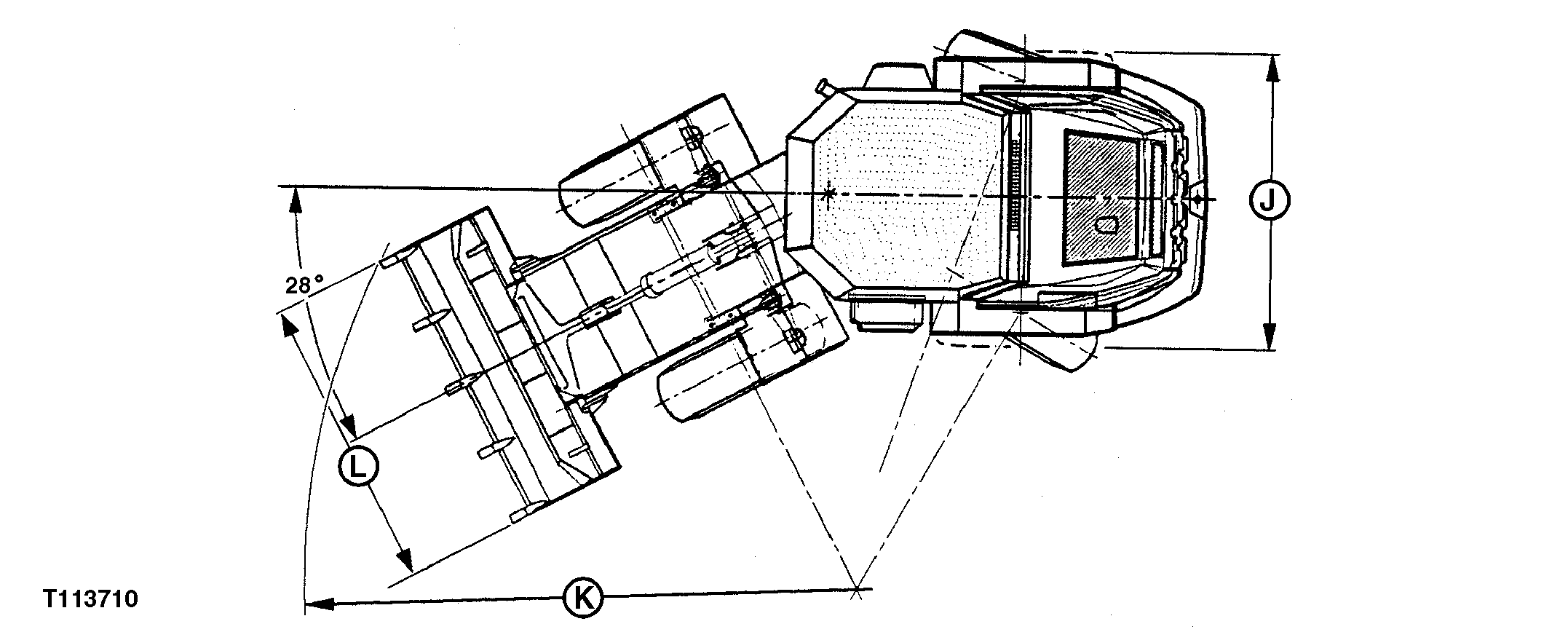

J-Width of machine 2340 mm (7 ft 8 in.)
K-Turning radius with bucket in carry position 3.9 m (12 ft 10 in.)
L-Bucket width 2400 mm (94 in.)
Bucket capacity 1.3 m3 (1.75 cu yd)
Standard operating weight 7590 kg (16,730 lb)



344H Engine Specifications

Engine:
John Deere PowerTech 4045T with turbocharger 98 SAE net hp (73 kW) @ 2400 rpm
  102 SAE gross hp (76 kW) @ 2400 rpm
Piston displacement 4.5 L (276 cu in.)
Air cleaner w/dual safety element and restriction indicator Dual stage dry type with restriction indicator
Electrical system 12 volt 65-amp alternator
Cold cranking capacity 850 amps (Dual battery is optional)
Compression ratio 17:1
Bore and stroke 127 mm x 106 mm (5.0 x 4.2 in.)
No. of cylinders 4
Maximum net torque at 1400 rpm 395 N·m (291 lb-ft)



CED,OUO1032,2803 -19-29NOV99-2/3

344H Power Train Specifications

Power Train: Hydrostatic
Travel Speeds:
Forward Speeds km/h mph
1 0-8.5 0-5.2
2 0-28.8 0-17.4
Reverse Speeds km/h mph
1 0-8.5 0-5.2
2 0-28.8 0-17.4



NOTE: All travel speeds are with 17.5-25 12PR tires.

  • SERVICE BRAKES:
    • Hydraulically-actuated, isolated system
    • Foot-operated
    • External inspection
  • PARK BRAKE:
    • Spring-applied, hydraulically released
  • Warning light in monitor-Dual level
  • Indicator lights and alarm sounds with power train in gear
  • STEERING:
    • Fully hydraulic
    • 56-degree articulation angle (28 degrees each direction), plus 26 degrees rear wheel steering tied mechically to articulation

    • Tires 344H
    15.5-25 12PR X
    17.5-25 12PR X
    17.5R25 XTLA X
