Air Conditioner-If Equipped

Push right half of air conditioning switch (1) to turn air conditioning on. Push left half of switch to turn air conditioning off.

Turn temperature control knob (2) to adjust air temperature. Turn knob clockwise to increase temperature. Turn counterclockwise to decrease temperature.

Turn blower speed knob (3) clockwise to increase blower speed or counterclockwise to decrease blower speed. Blower knob has three speed settings plus an "Off" position.

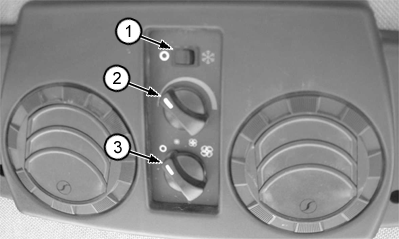

1-Air Conditioning Switch
2-Temperature Control Knob
3-Blower Speed Knob

HG31779,0000270 -19-29APR03-1/1
