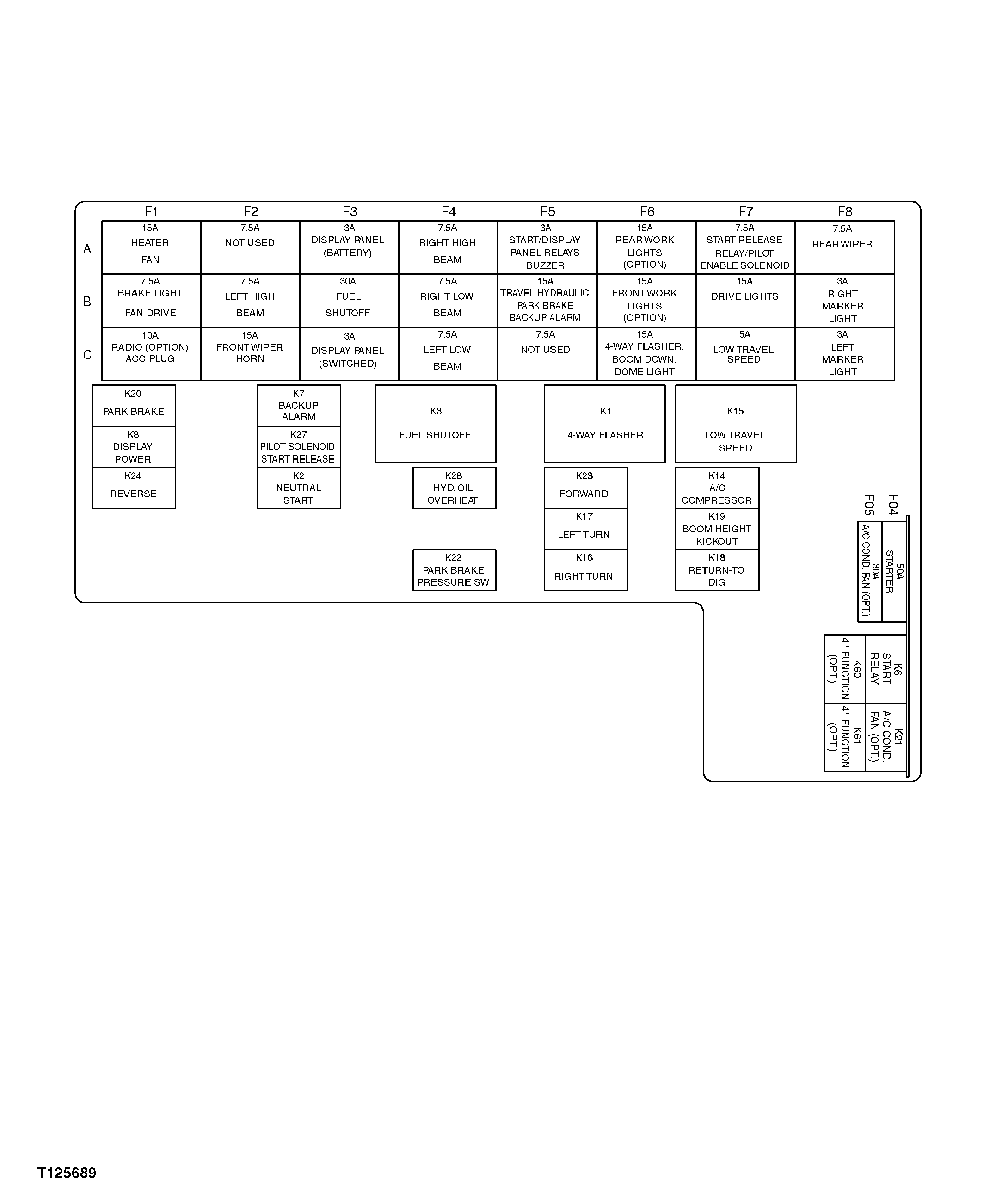

F1A-15A Heater Fan
F1B-7.5A Brake Light, Fan Drive
F1C-10A Radio, Acc Plug (Opt.)
F2A-7.5A Not Used
F2B-7.5A Left High Beam
F2C-15A Front Wiper, Horn
F3A-3A Display Panel (Batt.)
F3B-30A Fuel Shutoff
F3C-3A Display Panel (Switched)
F4A-7.5A Right High Beam
F4B-Right Low Beam
F4C-7.5A Left Low Beam
F5A-3A Start/Display Panel Relay, Warning Alarm
|
F5B-15A Travel Hydraulics, Park Brake, Backup Alarm
F5C-7.5A Not Used
F6A-15A Rear Work Lights (Opt.)
F6B-15A Front Work Lights (Opt.)
F6C-15A 4-Way Flasher, Dome Light
F7A-7.5A Start Release Relay/Pilot Enable Solenoid
F7B-15A Headlights
F7C-5A Low Speed
F8A-7.5A Rear Wiper
F8B-3A Right Marker Light
|
F8C-3A Left Marker Light
F03-50A Engine Preheat System
F04-50A Starter
F05-30A A/C (Opt.)
K1-4-Way Flasher Relay
K2-Neutral Start Relay
K3-Fuel Shut-Off Relay
K6-Start Relay
K7-Backup Alarm Relay
K8-Display Power Relay
K14-A/C Compressor Relay (Opt.)
K15-Low Speed Relay
K16-Right Turn Relay
K17-Left Turn Relay
|
K18-Return-to-Dig Relay
K19-Boom Height Kickout Relay
K20-Park Brake Relay
K21-A/C Condenser Fan Relay (Opt.)
K22-Park Brake Pressure Switch Relay
K23-Forward Direction Relay
K24-Reverse Direction Relay
K27-Pilot Solenoid Start Release Relay
K28-Hydraulic Oil Overheat Relay
K61-4th Function Relay (Opt.)
K62-4th Function Relay (Opt.)
|
