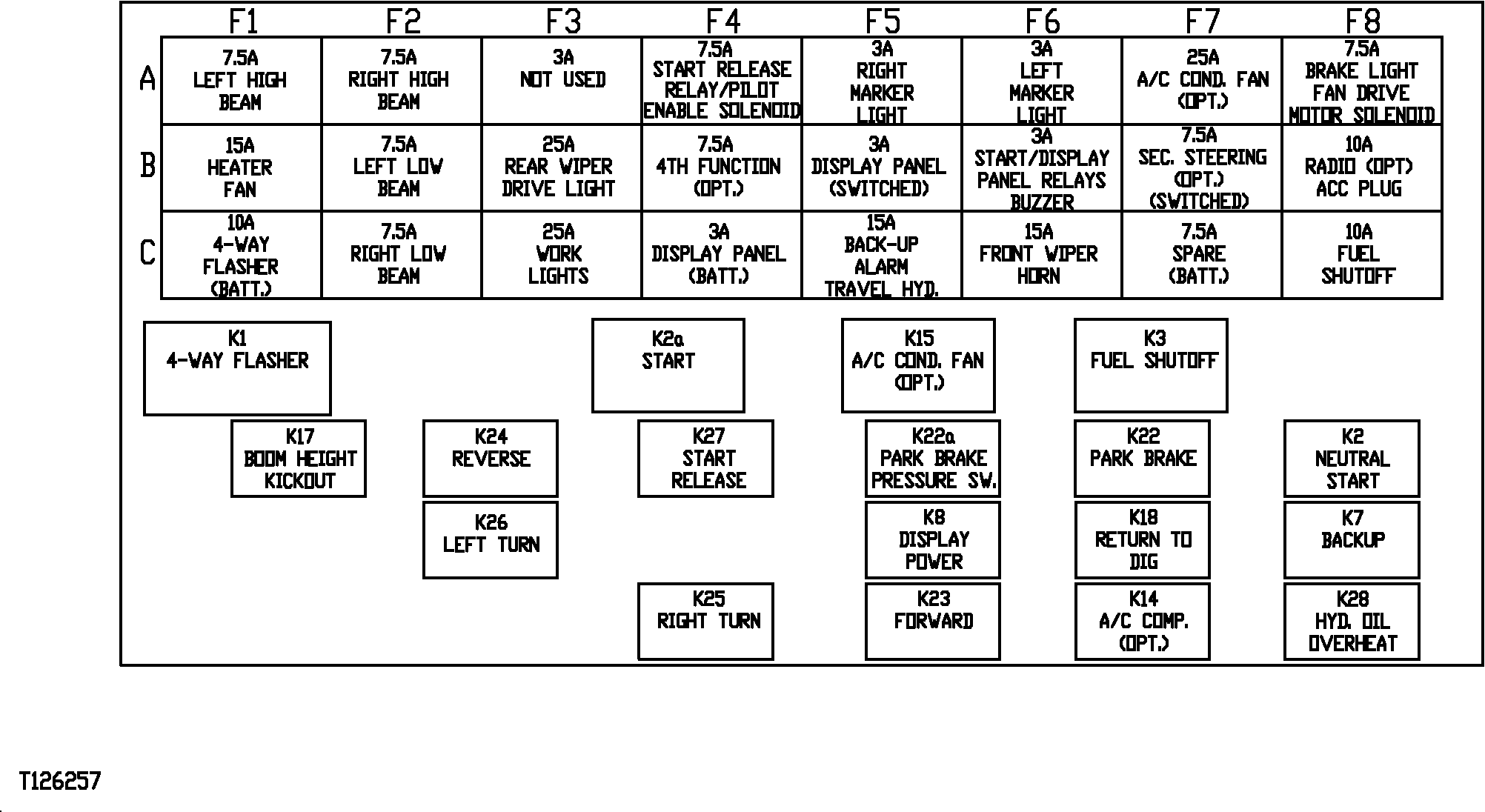

F1A-7.5A Left High Beam
F1B-15A Heater Fan
F1C-10A 4-Way Flasher (Batt.)
F2A-7.5A Right High Beam
F2B-7.5A Left Low Beam
F2C-7.5A Right Low Beam
F3A-Not Used
F3B-25A Rear Wiper, Drive Light
F3C-25A Work Lights
F4A-7.5A Start Release Relay/Pilot Enable Solenoid
F4B-7.5A 4th Function (Switched) (Opt.)
|
F4C-3A Display Panel (Batt.)
F5A-3A Right Maker Light
F5B-3A Display Panel (Switched)
F5C-15A Back-up Alarm, Travel Hydraulics
F6A-3A Left Marker Light
F6B-3A Start/Display Panel Relays, Alarm
F6C-15A Front Wiper, Horn
F7A-25A A/C Condenser Fan (Opt.)
F7B-7.5A Secondary Steering (Switched) (Opt.)
|
F7C-7.5A Spare (BATT)
F8A-7.5A Brake Lights, Fan Motor Solenoid
F8B-10A Radio (Opt.), ACC Plug
F8C-10A Fuel Shutoff
K1-4-Way Flasher Relay
K2-Neutral Start Relay
K2a-Start Relay
K3-Fuel Shutoff Relay
K7-Backup Alarm Relay
K8-Display Power Relay
K14-A/C Compressor (Opt.)
K15-A/C Condenser Fan (Opt.)
|
K17-Boom Height Kickout Relay
K18-Return-to-Dig Relay
K22-Park Brake Relay
K22a-Park Brake Pressure Switch Relay
K23-Forward Relay
K24-Reverse Relay
K25-Right Turn Relay
K26-Left Turn Relay
K27-Start Release Relay
K28-Hydraulic Oil Overheat Relay
|
