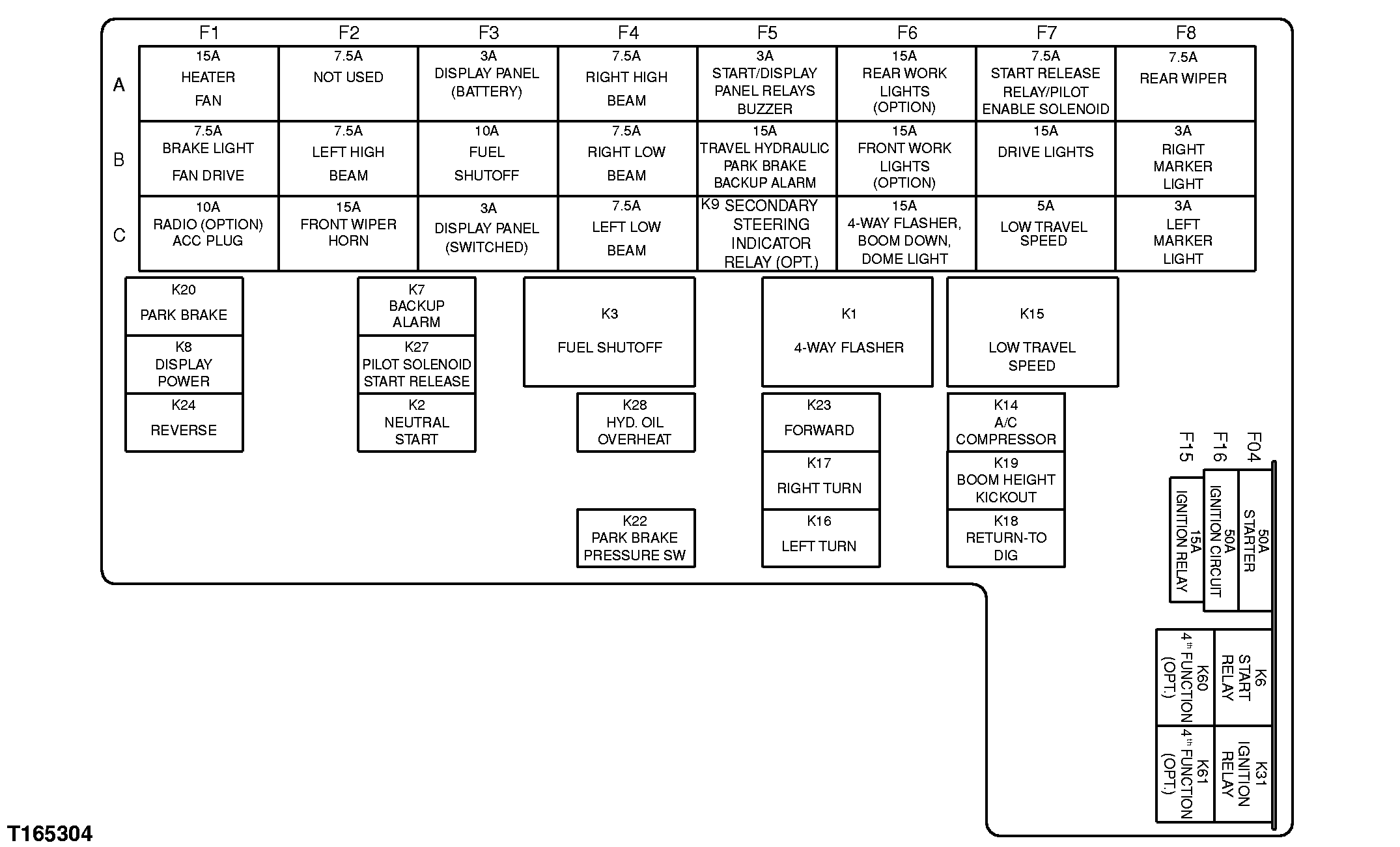

F04-50A Start
F1A-15A Blower Motor
F1B-7.5A Brake Light, Fan Drive Motor Solenoid (SE5, W3)
F1C-10A Radio (Optional), Accessories Plug
F2A-7.5A Spare (Battery)
F2B -7.5A Left High Beam
F2C-15A Front Wiper, Horn
F3A-3A Monitor (Battery)
|
F3B-10A Fuel Shutoff
F3C-3A Monitor
F4A-7.5A Right High Beam
F4B-7.5A Right Low Beam
F4C-7.5A Left Low Beam
F5A-3A Start, Monitor Relays, Buzzer (Switched)
F5B-15A Backup Alarm, Travel Hydraulic, Park Brake
F5C-Optional Fourth Function and Secondary Steering
|
F6A-15A Rear Work Lights
F6B-15A Front Work Lights
F6C-15A 4-Way Flasher and Switch, Pilot Enable/Boom Down Switch, Dome Light, Beacon Light Switch
F7A-7.5A Start Release Relay/Pilot Enable Solenoid
|
F7B-15A Drive Light
F7C-5A High Speed Disconnect
F8A-7.5A Rear Wiper Motor
F8B-3A Rear Marker Light
F8C-3A Left Marker Light
F15-15A Key Switch (Unswitched Power)
F16 -50A Ignition Relay (Switched Power)
|
