Check Receiver-Dryer Moisture Indicator-If Equipped

2. Lift front cover and slide towards front of machine.

3. Lift up rear cover.

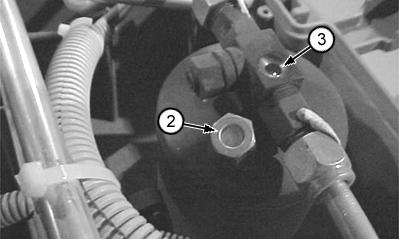

4. Check moisture sight glass (2). Color should be blue, indicating that refrigerant is dry.

5. Check air bubble sight glass (3) for air bubbles. No air bubbles, or few air bubbles, should be visible.

6. If moisture sight glass shows wet (pink) or if excessive air bubbles are visible, see your authorized dealer within next 100 machine hours to service receiver-dryer.

1-Clips (7 used)
2-Moisture Sight Glass
3-Air Bubble Sight Glass

HG31779,0000275 -19-30APR03-1/1
