Service Brake Oil

causym CAUTION: Brake lines must be bled when oil is changed, to replace trapped air in lines.

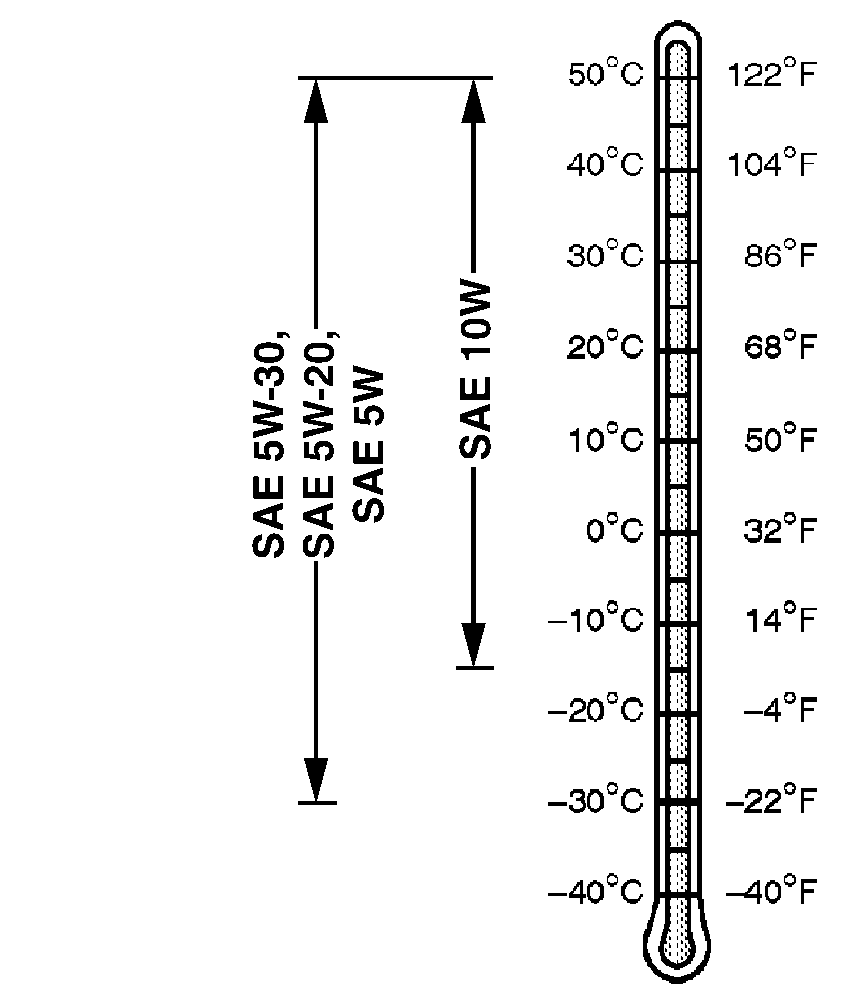

Depending upon the expected air temperature range between oil changes, use viscosity shown on chart.

causym CAUTION: Using another type of oil can cause damage to brake seals, causing brake failure.

The following oil is preferred:

  • SAE10W

The following oils are recommended:

  • Engine oil (SAE 5W30, SAE 5W20, SAE 5W) meeting one of more of the following:
    • API Service CD/SF, CD/SE, CD/SD, CD/SC, CC/SF, CC/SE, CC/SD, CC/SC (MIL-L-2104D, MIL-L-2104C, MIL-L-46152B, MIL-L-46152).
T147835

TX03679,0001814 -19-05NOV01-1/1
