Check Two-Speed Gearbox Oil Level

1. Park machine on a level surface. Lower front-mounted equipment to the ground.

2. Engage park brake. Turn key switch OFF.

causym CAUTION: Prevent possible injury from unexpected machine movement. Install frame locking pin before working in frame pivot area.

3. Install frame locking pin. (See Periodic Maintenance chapter.)

4. Remove left shield on rear frame in articulation area.

5. Check oil level on dipstick (1). Oil level must be between the "LOW" and "FULL" marks.

6. If necessary, tilt cab. (See Hydraulic Cab Tilt Procedure, Section 90). Remove fill plug (2) and add oil. (See Fuels and Lubricants chapter.)

7. Install fill plug (2).

8. Return cab to original position.

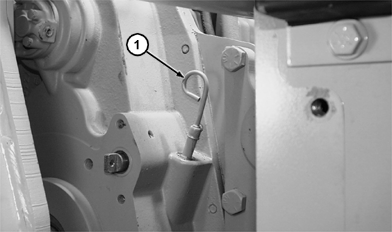

1-Dipstick
2-Fill Plug

T129650B
T127954
T127701

CED,OUOEBTW,138 -19-16FEB00-1/1
