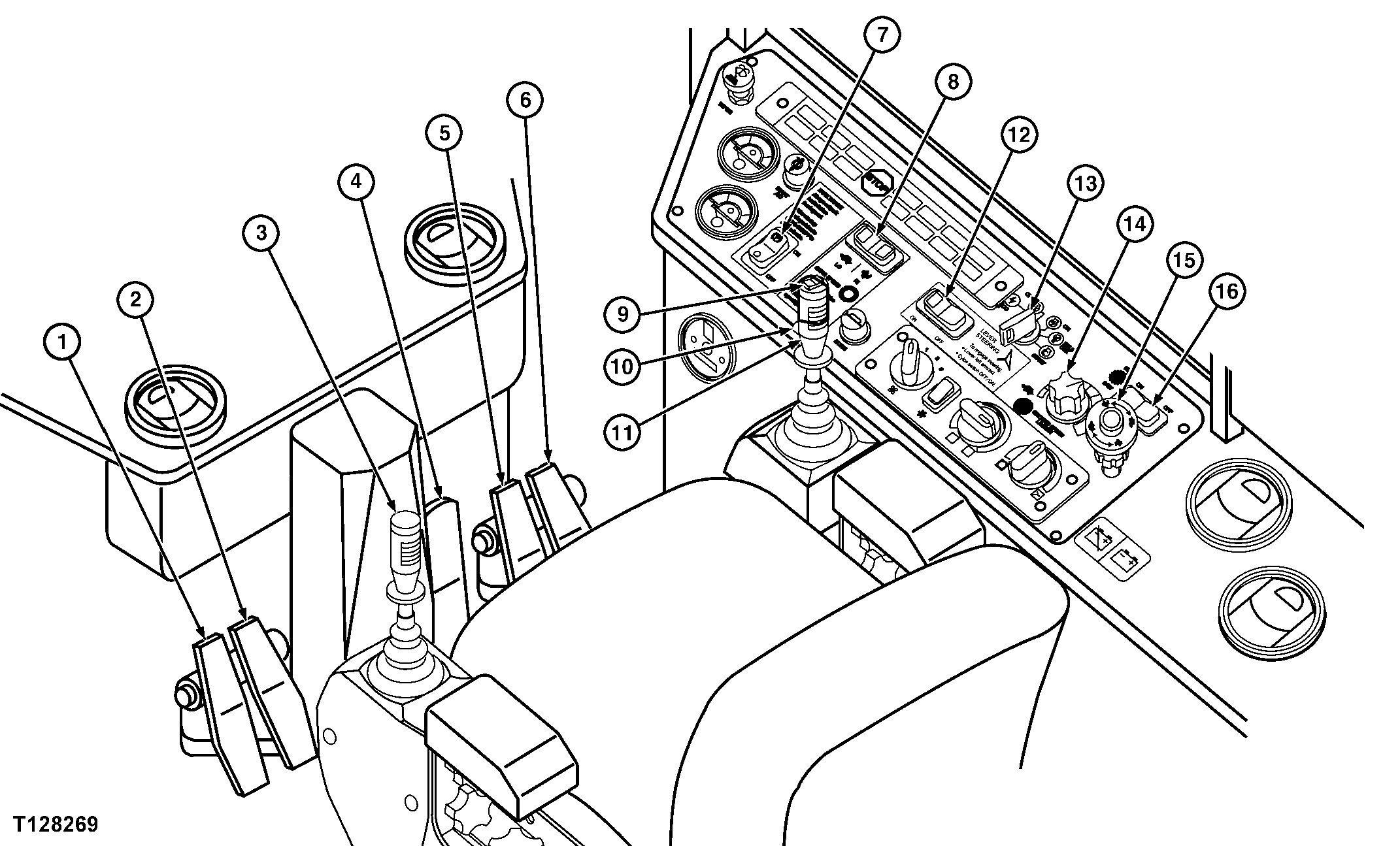

1-Grapple Arms Close (Continuous Saw Machines); Shear Blades Close, Grapple Arms Close (Shear Machines)
2-Grapple Arms Open (Continuous Saw Machines); Shear Blades Open, Grapple Arms Open (Shear Machines)
|
3-Steering Lever
4-Service Brake Pedal
5-Reverse Pedal
6-Forward Pedal
7-Park Brake Switch
8-Two-Speed Gearbox Selector Switch
|
9-Accumulator Arm(s) Rocker Switch
10-Differential Lock Button
11-Lift/Tilt Control Lever
12-Lever Steer Activate Switch
13-Key Switch
|
14-Ground Speed Limiter Knob
15-Engine Speed Control Knob
16-Continuous Saw Switch (Continuous Saw Machines Only)
|
