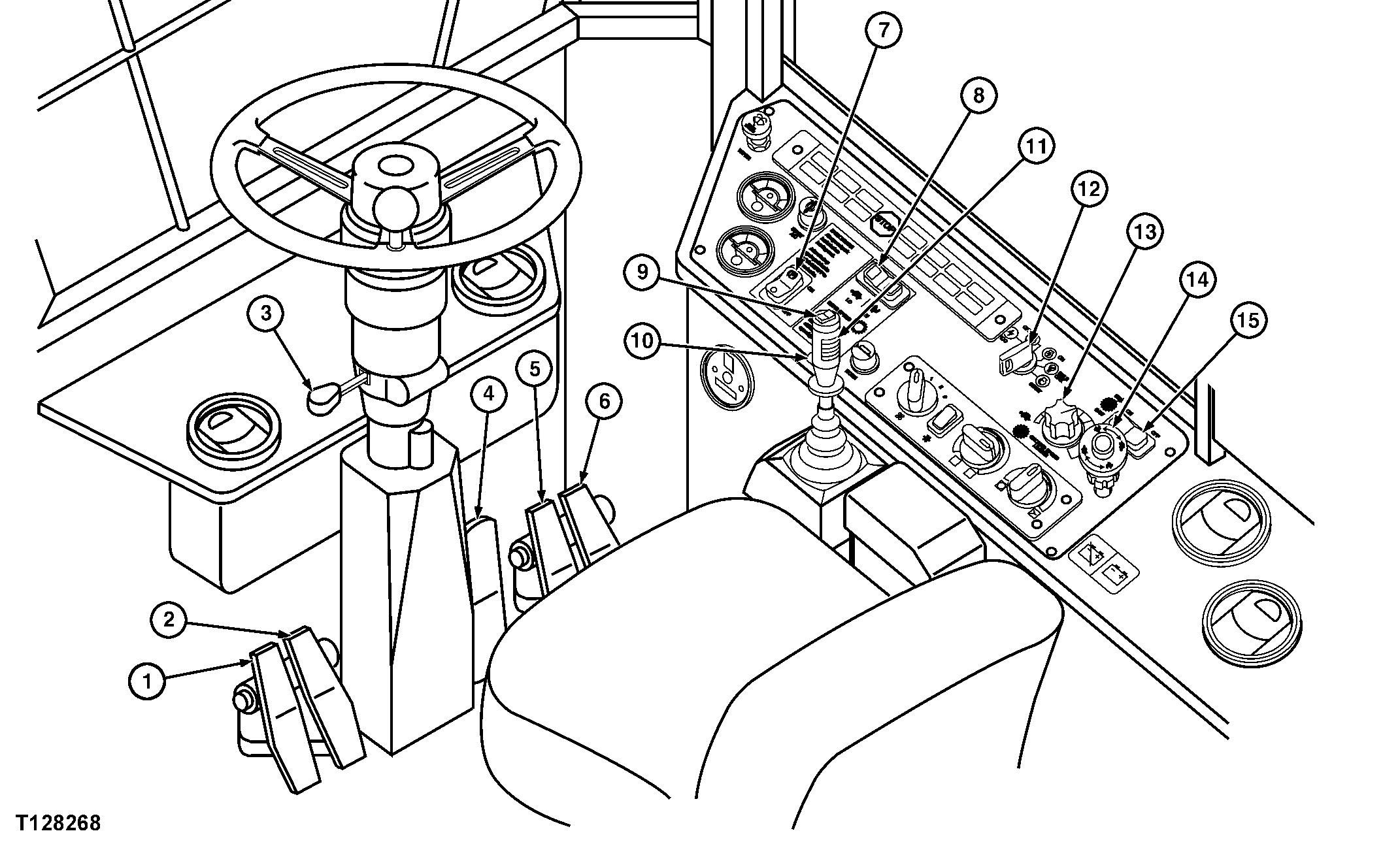

1-Grapple Arms Close (Continuous Saw Machines); Shear Blades Close, Grapple Arms Close (Shear Machines)
2-Grapple Arms Open (Continuous Saw Machines); Shear Blades Open, Grapple Arms Open (Shear Machines)
|
3-Steering Column Tilt/Telescope Adjustment Lever
4-Service Brake Pedal
5-Reverse Pedal
6-Forward Pedal
7-Park Brake Switch
|
8-Two-Speed Gearbox Selector Switch
9-Accumulator Arm(s) Rocker Switch
10-Differential Lock Button
11-Lift/Tilt Control Lever
12-Key Switch
|
13-Ground Speed Limiter Knob
14-Engine Speed Control Knob
15-Continuous Saw Switch (Continuous Saw Machines Only)
|
