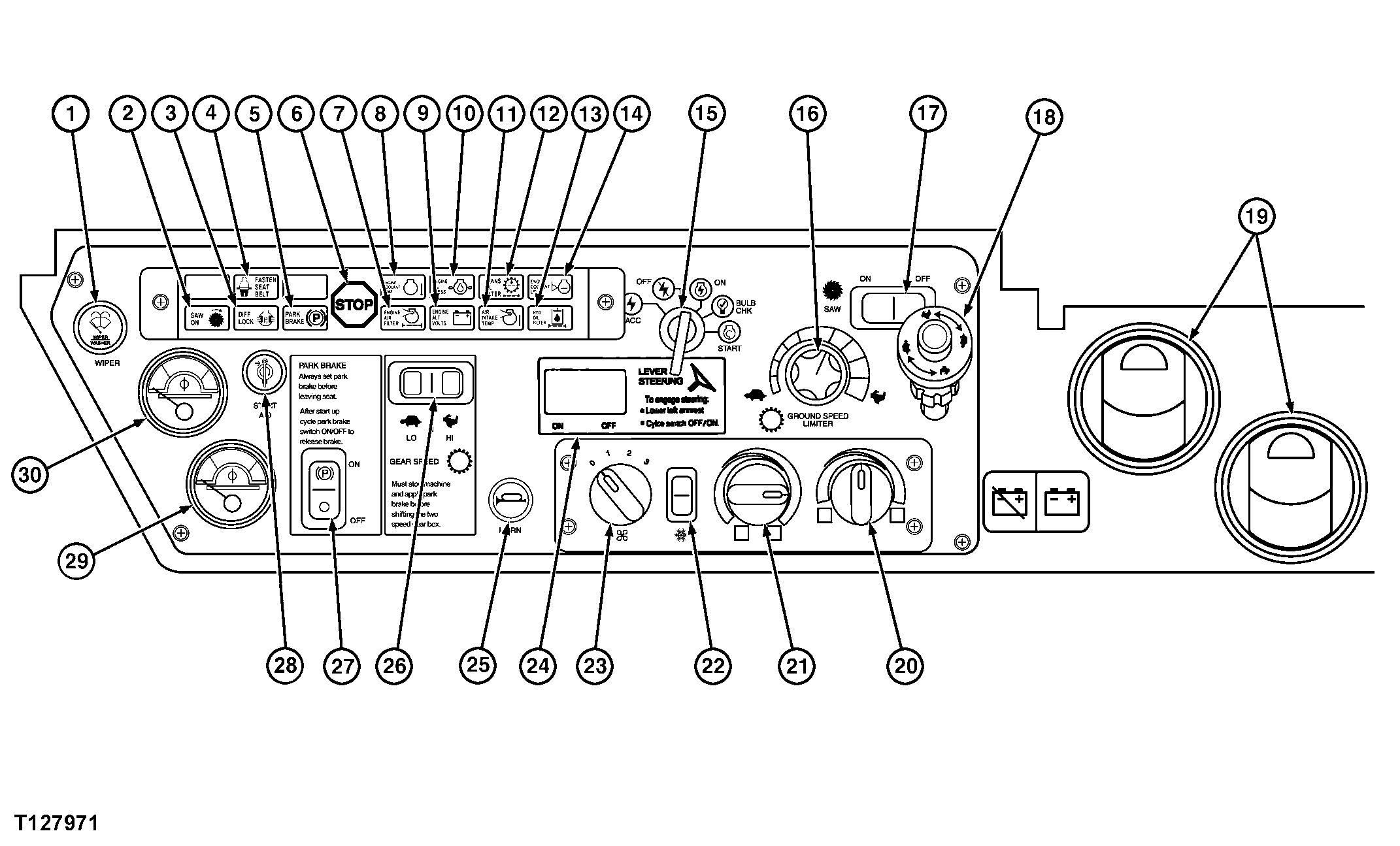

1-Windshield Wiper/Washer Switch
2-Continuous Saw Indicator (Continuous Saw Machines Only)
3-Differential Lock Indicator
4-Fasten Seat Belt Warning
5-Park Brake Indicator
6-Stop Indicator
7-Engine Air Filter Restriction Indicator
8-Engine Coolant Temperature Indicator
9-Alternator Voltage Indicator
|
10-Engine Oil Pressure Indicator
11-Engine Air Intake Temperature Indicator (843H Only)
12-Transmission Oil Filter Restriction Indicator
13-Hydraulic Oil Filter Restriction Indicator
14-Engine Coolant Level Indicator
15-Key Switch
16-Ground Speed Limiter Control Knob
|
17-Continuous Saw Switch (Continuous Saw Machines Only)
18-Engine Speed Control Knob
19-Air Vents
20-Fresh Air/Cab Air Recirculation Control Knob
21-Temperature Control Knob
22-Air Conditioner Switch
23-Blower Switch
24-Lever Steering Switch (Lever Steer Machines Only)
|
25-Horn Button
26-Two-Speed Transmission Gear Selector Switch
27-Park Brake Switch
28-Start Aid Button (if equipped)
29-Transmission Oil Temperature Gauge
30-Engine Coolant Temperature Gauge
|
