Differential Lock Indicator and Switch

Press differential lock button (1) to lock front and rear axle differential.

Release differential lock button to unlock differential.

1-Differential Lock Button

CED,OUOEBTW,174 -19-18FEB00-1/2

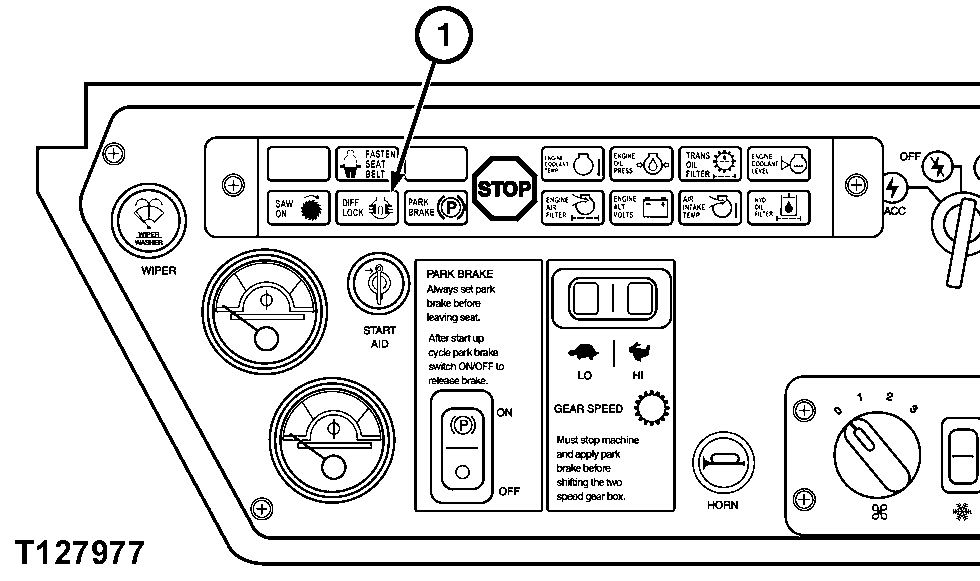

The differential lock indicator (1) lights when the differential is locked.

1-Differential Lock Indicator

CED,OUOEBTW,174 -19-18FEB00-2/2
