Park Brake Switch and Indicator

The park brake indicator (1) lights when the park brake is engaged, key is in the ON position and engine running.

Engage the park brake by:

  • Stopping the engine.

    OR

  • Pushing park brake switch (2) to ON position.

If the park brake engaged automatically (by stopping the engine), the park brake switch will be in the OFF position. To disengage park brake, start engine, push park brake switch to ON and then OFF.

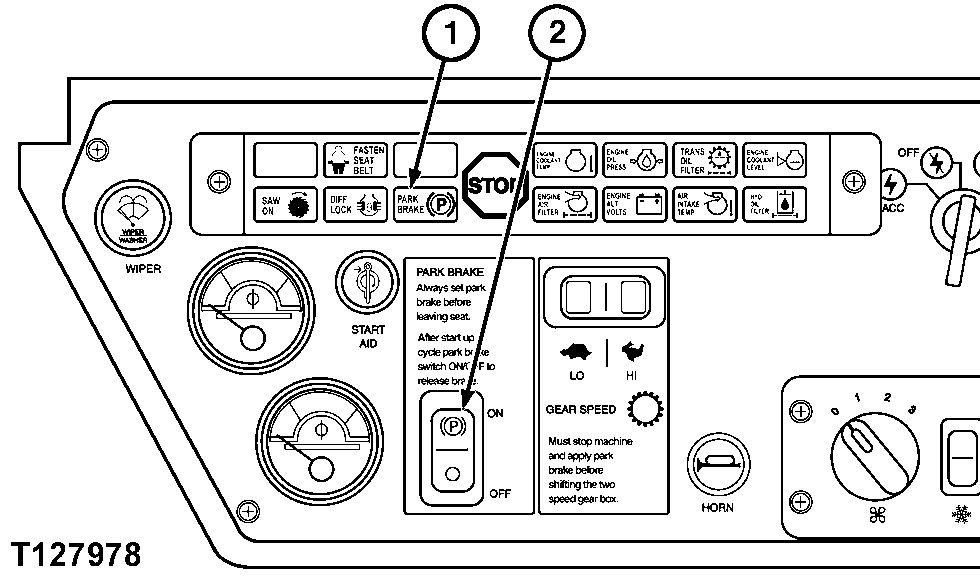

1-Park Brake Indicator
2-Park Brake Switch

T127147
T127978
