Shifting the Two-Speed Gearbox

IMPORTANT: Always stop machine on level surface and engage the park brake before shifting the two-speed gearbox.

Shift machine only when stationary and park brake is engaged.

Move two-speed gearbox switch (1) to "LO" position for tree harvesting.

Move two-speed gearbox switch to "HI" position for driving without a load.

NOTE: After two-speed gearbox has been shifted to desired position disengage park brake to resume operation.

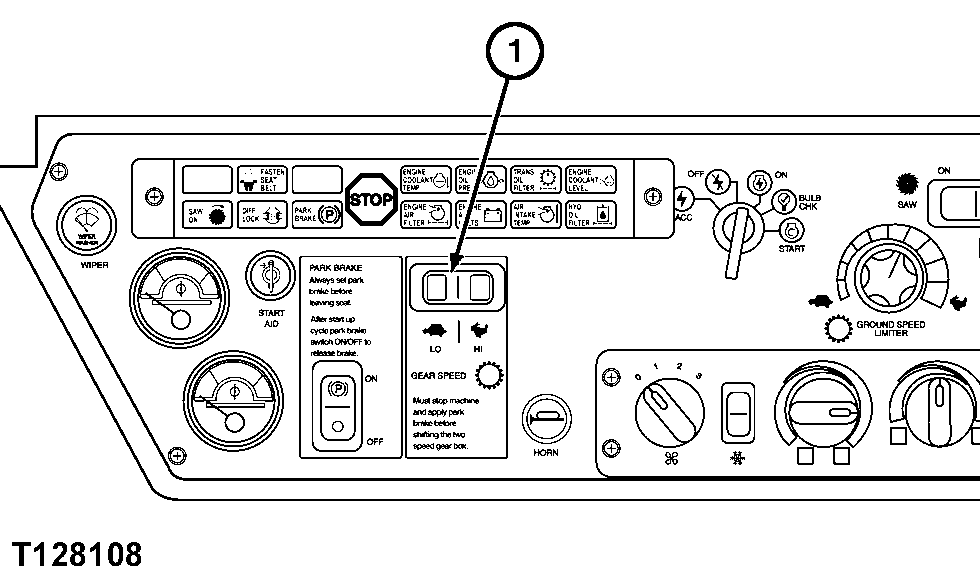

T128108


1-Two-Speed Gearbox Switch
