Using the Park Brake

Engage the park brake by:

  • Stopping the engine.

    OR

  • Pushing park brake switch (2) to ON position.

If the park brake engaged automatically (by stopping the engine), the park brake switch will be in the OFF position. To disengage park brake, start engine, push park brake switch to ON and then to OFF.

Park brake indicator (1) will light when park brake is engaged.

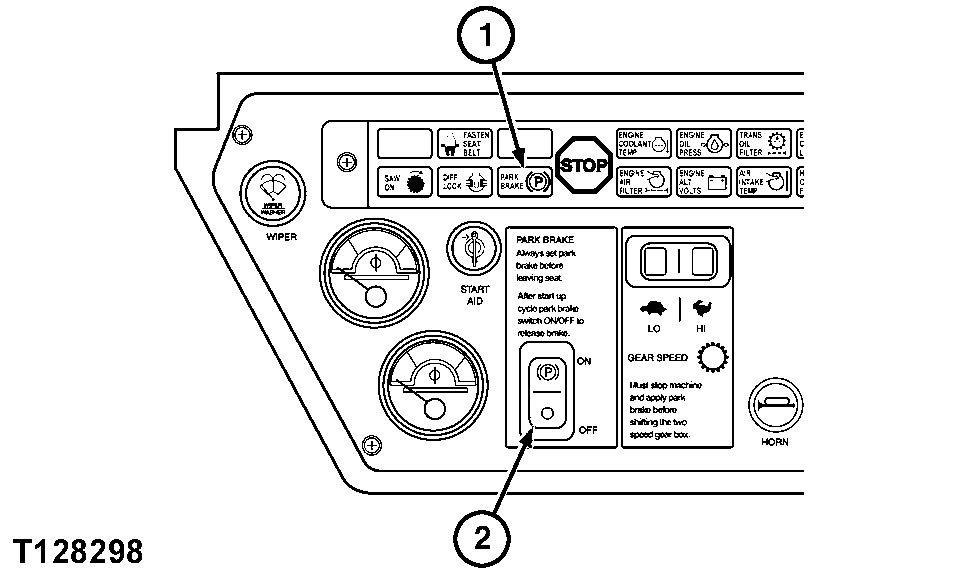

T128298


1-Park Brake Indicator
2-Park Brake Switch

CED,OUOEBTW,197 -19-18FEB00-1/1
