Operating Lever Steering (Lever Steer Machines Only)

To activate lever steer controller:

Rotate left-hand armrest (1) to the horizontal position.

Start engine.

Press lever steer switch (2) to ON position.

Steering is accomplished by moving joystick to the left or right.

If lever steer switch is left in the ON position after the engine is turned off, it must be cycled OFF, then ON before lever steer controller will operate.

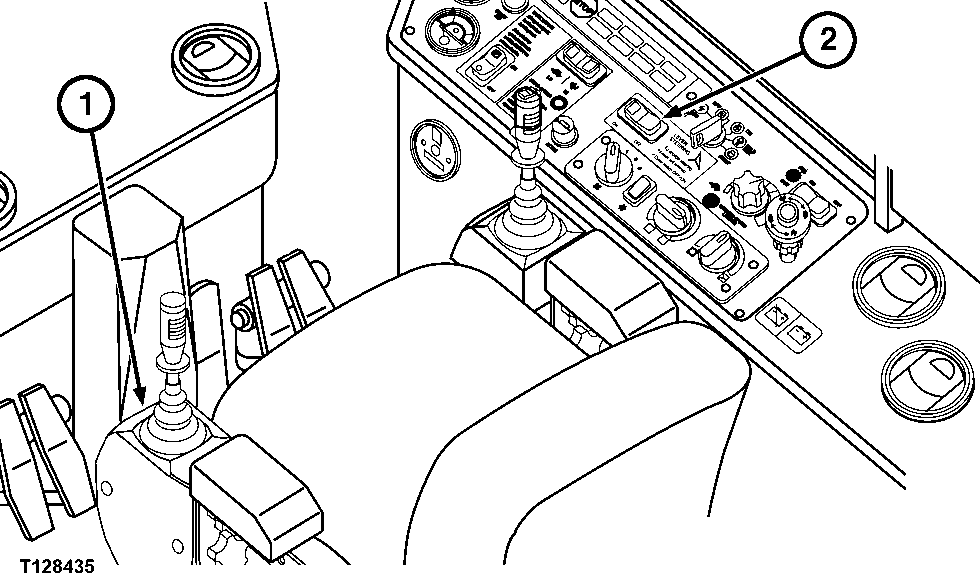

T128435


1-Left-Hand Armrest
2-Lever Steer Switch
