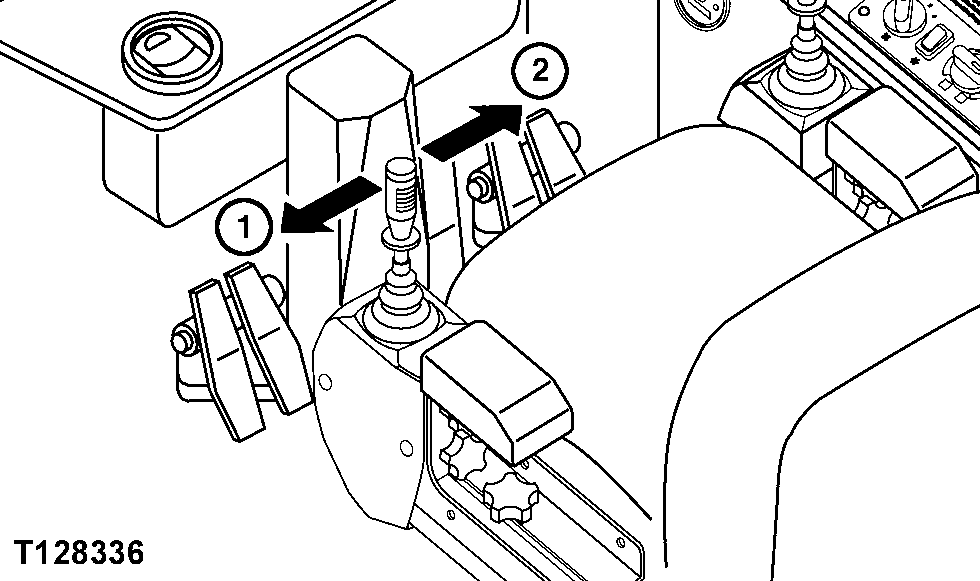

Operating Lever Steer Control Lever

Move control lever left (1) to articulate machine to the left.

Move control lever right (2) to articulate machine to the right.

When lever is released, it will return to neutral. The machine will remain in its articulated position.


1-Articulate Machine Left
2-Articulate Machine Right

T128336

CED,OUOEBTW,200 -19-18FEB00-1/1
