Operating Continuous Saw Controls

A rocker switch (3) on top of the lift/tilt control lever controls the accumulator arm(s).

To open the accumulator arm(s), press rocker switch to the left.

To close the accumulator arm(s), press rocker switch to the right.

Pedal (2) opens the grapple arms.

Pedal (1) closes the grapple arms.

To start saw, turn saw switch (4) to ON position.

If saw switch is in ON position before engine is started, saw will not run after engine is started until saw switch is turned OFF and then back to ON.

Saw indicator will light when saw is running.

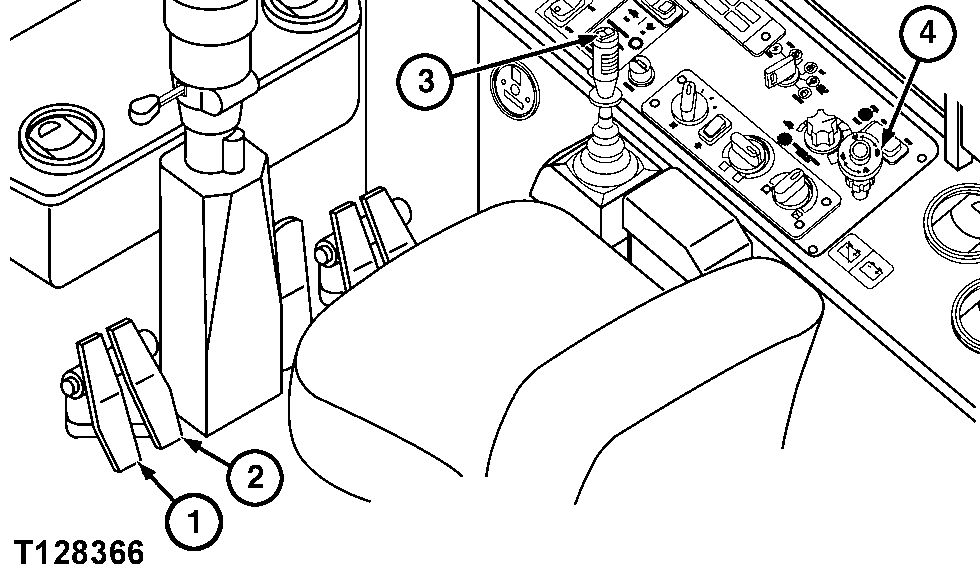

1-Close Grapple Arms Pedal
2-Open Grapple Arms Pedal
3-Accumulator Arm(s) Control Switch
4-Saw Switch
