Towing Procedure

IMPORTANT: Engine cannot be started by towing machine.

A rigid tow bar must be used so towing machine can stop machine being towed. Towing machine must be of sufficient size to adequately handle or stop load being towed.

Never tow machine faster than 10 km/h (6.2 mph).

1. Connect a rigid tow bar to tow loop (1) of machine being towed.

2. Start engine if operational.

3. Install frame locking pin.

NOTE: Frame locking pin is installed to prevent weaving as machine is towed.

4. If engine operational, raise front-mounted equipment and support it off ground.

5. Stop engine.

causym CAUTION: Machine may roll when drive shafts are disconnected. Use blocks at front and rear of tires to prevent machine from rolling.

6. Put blocks at front and rear of tires.

T127110


1-Tow Loop

CED,OUOEBTW,205 -19-22FEB00-1/2

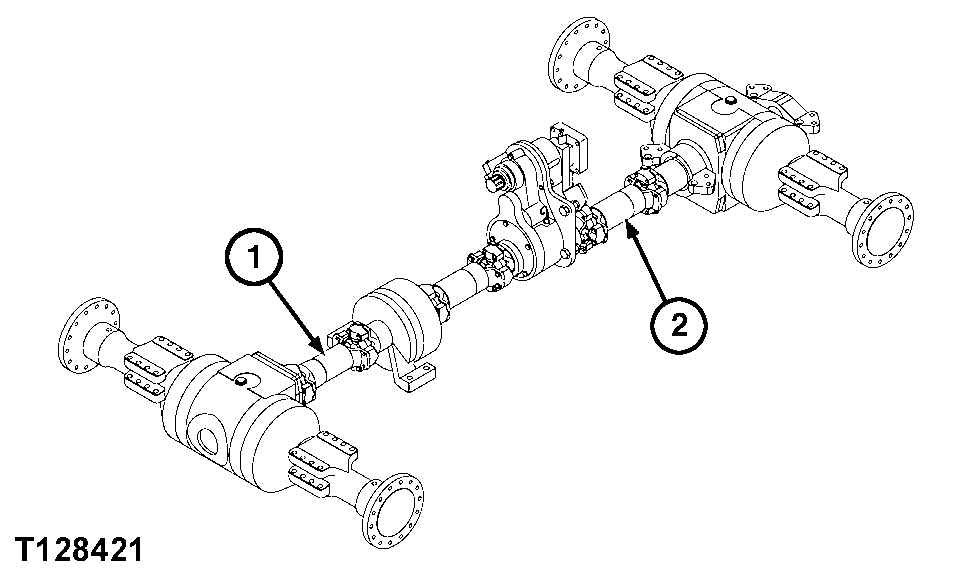

7. Remove front (1) and rear (2) drive shafts so transmission output shaft does not turn.

8. Remove blocks. Slowly tow machine.


1-Front Drive Shaft
2-Rear Drive Shaft

T128421

CED,OUOEBTW,205 -19-22FEB00-2/2
