Boom Lock

CAUTION: Always install service boom lock before working on or around this machine with the boom raised.

2. Remove boom lock (1) from inside of machine cab by turning lock lever counterclockwise.

3. Install boom lock on boom cylinder with lock lever facing to the outside of machine. Lower boom onto boom lock. Rotate head fully forward.

4. Tighten boom lock lever.

5. Store boom lock inside of machine cab when not in use.

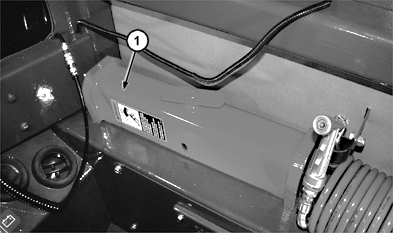

1-Boom Lock
