Opening Grille Door

1. Park machine on a level surface and lower front-mounted equipment to the ground.

2. Remove cap screws on right side of grille door.

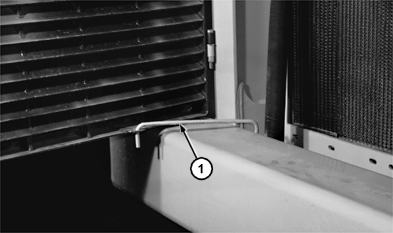

3. Position rod (1) in notch to hold door open.


1-Rod

T127039
