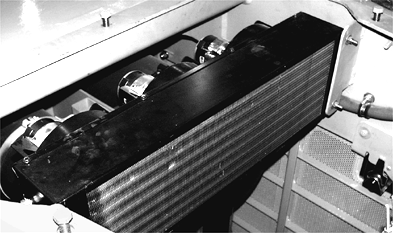

Check Air Conditioning Condenser

NOTE: Top engine access panel removed for clarity.

1. Remove left front engine shield.

causym CAUTION: Prevent possible injury from flying chips if compressed air is more than 210 kPa (2.1 bar) (30 psi). Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye equipment.

2. Check condenser. If dirty, remove top engine compartment panel. Clean with pressurized air if necessary.

3. Replace top engine compartment panel, if removed, and top left front engine shield.

T127382
