Check Radiator, Oil Cooler and Charge Air Cooler

NOTE: Charge air cooler is installed on 843H machines only.

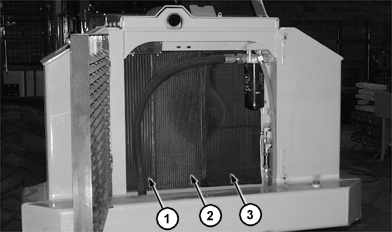

Check radiator (3), oil cooler (2) and charge air cooler (1) for debris or damage. Clean or replace as necessary.

1-Charge Air Cooler
2-Oil Cooler
3-Radiator

CED,OUOEBTW,225 -19-22FEB00-1/1
