Lubricate Tilt and Lift Cylinders, and Articulation Points

causym CAUTION: Prevent unexpected machine movement and possible personal injury. Install frame locking pin before lubricating.

Install frame locking pin and tilt shear head forward and lower to ground before lubricating machine.

Grease working tool pivots daily for first 100 hours and when working in mud and water.

Lubricate fittings until grease escapes at joints. (See Fuels and Lubricants chapter.)

T103588

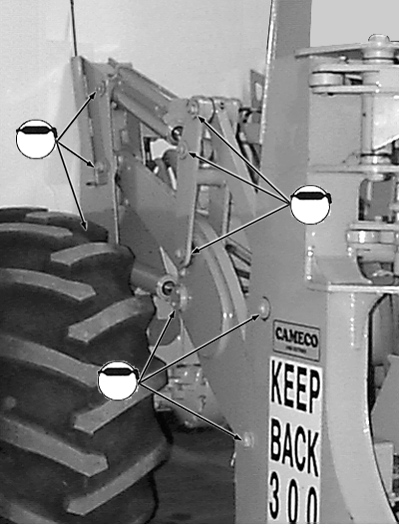

Eighteen Points, Right Side Shown

CED,OUOEBTW,228 -19-22FEB00-1/2

NOTE: If operating machine in deep mud, water, or snow, lubricate daily or every 10 hours. Clear all debris from around greasing area.

T127277

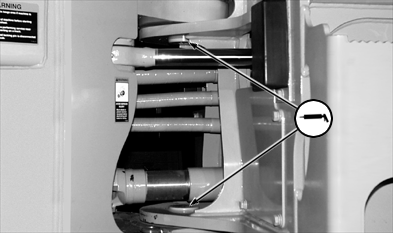

Two Points
