Check Cab Fresh Air Filter

1. Remove grille (1).

2. Remove filter (2).

3. Inspect filter. Clean or replace if necessary.

4. Clean filter in one of these ways:

a. Tap filter on a flat surface with dirty side down.

causym CAUTION: Prevent possible injury from flying chips if compressed air is more than 210 kPa (2.1 bar) (30 psi). Reduce compressed air to less than 210 kPa (2.1 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

b. Use compressed air opposite to the normal air flow.

c. Wash filter in warm, soapy water. Flush filter. Allow filter to dry before using heater, defroster, or air conditioner.

5. Install filter.

6. Install grille.

T127387
T127384

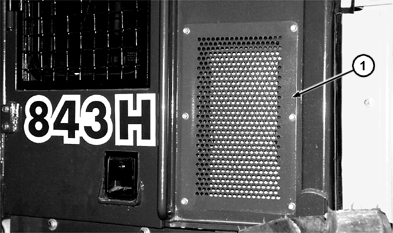

1-Grille

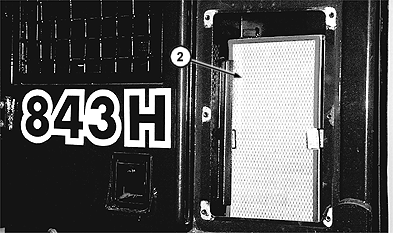

2-Filter

CED,OUOEBTW,230 -19-22FEB00-1/1
