Replace Hydraulic Return Oil Filter

NOTE: Open rear grille to access hydraulic return oil filter.

1. Turn filter (1) counterclockwise to remove.

2. Clean mounting surface. Apply thin film of oil to gasket of new filter.

3. Install new filter. Turn filter clockwise by hand until gasket touches mounting surface.

4. Tighten one full turn more.

5. Start the engine and run for 5 minutes. Stop engine.

6. Check for any leakage at filter. Tighten filter only enough to stop leaks.

7. Check oil level.

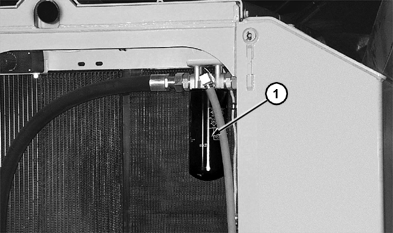

T127439


1-Filter

CED,OUOEBTW,236 -19-22FEB00-1/1
