Replace Final Fuel Filter

1. Turn filter assembly (1) counterclockwise to remove. Allow sediment to drain into a container. Dispose of waste properly.

2. Clean filter base.

3. Install new filter. (Follow instructions on filter.)

4. Bleed fuel system. (See procedure in Replace Primary Fuel Filter (Water Separator) in this group.)

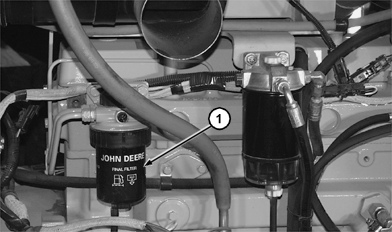

1-Final Fuel Filter

T127983

CED,OUOEBTW,238 -19-22FEB00-1/1
