Check Park Brake Oil Level

1. Remove plug (1).

IMPORTANT: Oil level must be at "level" mark. Too much oil can cause overheating. Too little oil can cause bearing failure.

2. Add oil if necessary.

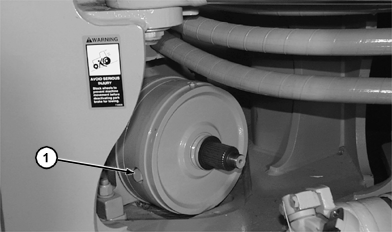

1-Fill Plug

T128382

Yoke and Drive Shaft Removed for Clarity

T129347

CED,OUOEBTW,241 -19-22FEB00-1/1
