Change Two-Speed Gearbox Oil

1. Park machine on a level surface.

2. Lower front-mounted equipment to ground.

causym CAUTION: Prevent possible injury from unexpected machine movement. Connect frame locking pin to both frames.

3. Install frame locking pin.

4. Push park brake switch to ON to engage park brake.

IMPORTANT: Turbocharger may be damaged if engine is not properly shut down.

5. Run engine at 1/2 speed for 2 minutes before stopping to avoid damage to turbocharger.

6. Move engine speed control knob to slow idle position.

7. Turn key switch OFF. Remove key from switch.

causym CAUTION: Prevent possible injury from falling bottom guard. Support bottom guard when removing guard from machine. Bottom guard is heavy when mud and debris accumulate on top.

8. Remove bottom guard. Bottom guard is hinged at rear end.

9. Remove plug (1) and drain oil into a container. Dispose of waste oil properly.

10. Install plug.

11. Add oil at fill plug (2). The two-speed gearbox oil capacity is approximately 4.9 L (5.2 qt). (See Fuels and Lubricants chapter.)

T127468
T127701
T128022

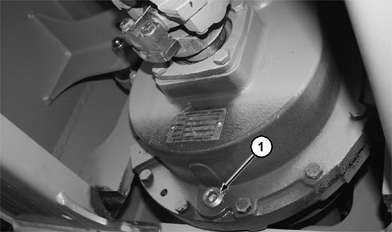

1-Drain Plug

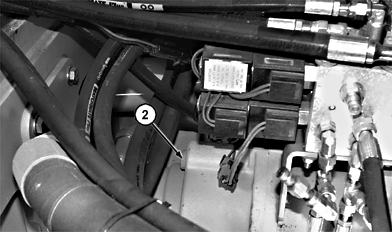

2-Fill Plug

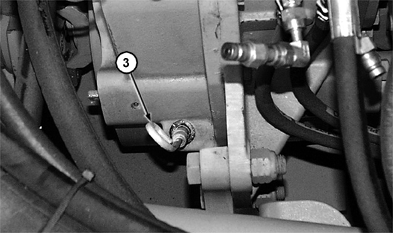

3-Dipstick

CED,OUOEBTW,242 -19-22FEB00-1/2

12. Check oil on dipstick (3). Oil level must be between"Low" and"Full" marks.

13. Install bottom guard.

14. Check oil level. (See Maintenance-Every 500 Hours chapter.)

T128021

CED,OUOEBTW,242 -19-22FEB00-2/2
