Change Park Brake Oil

IMPORTANT: Oil must be at level mark. Too much oil can cause overheating; too little oil can cause bearing failure.

2. Drain oil into container. Dispose of waste properly.

3. Install drain plug.

4. Remove fill plug (1).

5. To check oil level, remove sight plug (2). Oil must be at "level" mark.

6. Drain or add oil as necessary. The approximate capacity of park brake oil is 0.6 L (20 oz).

7. Install fill and sight plugs.

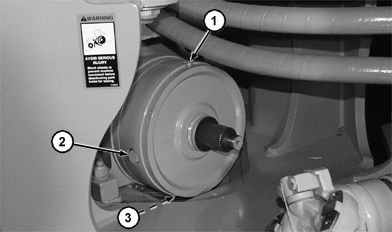

1-Fill Plug
2-Sight Plug
3-Drain Plug

CED,OUOEBTW,246 -19-22FEB00-1/1
