Removing Batteries

causym CAUTION: Always remove grounded (-) battery clamp first and replace it last.

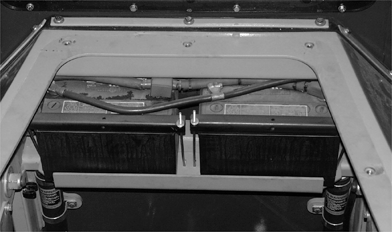

NOTE: Access cover and air conditioning condenser removed for clarity.

1. Disconnect negative (-) battery cables first, then positive (+) cables.

2. Remove bolts and hold down brackets.

3. Lift battery out of compartment.

T127498

CED,OUOEBTW,251 -19-23FEB00-1/1
