Operating Lift/Tilt Control Lever

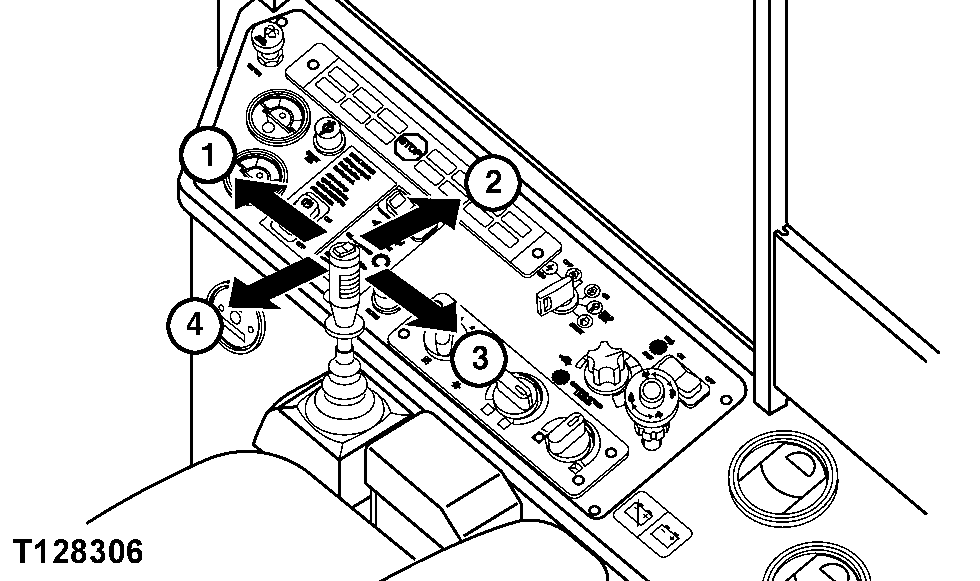

Move control lever forward (1) to lower front-mounted equipment or backward (3) to raise front-mounted equipment.

Move control lever left (4) to tilt front-mounted equipment backward and right (2) to tilt front-mounted equipment forward.

When lever is released, it will return to neutral. The front-mounted equipment will remain positioned.

1-Lower Front-Mounted Equipment
2-Tilt Front-Mounted Equipment Forward
3-Raise Front-Mounted Equipment
4-Tilt Front-Mounted Equipment Backward
