Check Radiator Coolant Level (643H)

causym CAUTION: Prevent possible injury from hot spraying water. DO NOT remove radiator filler cap unless engine is cool. Then turn cap slowly to the stop. Release air to relieve all pressure before you remove cap.

1. Remove cover (1).

2. Turn cap (2) slowly to the stop to release pressure. Remove cap. Coolant level must be at bottom of filler neck.

NOTE: If radiator coolant level is low, check for leaks on radiator cap, and hose connections between radiator and coolant recovery tank.

3. If necessary, add coolant. Do not overfill. Tighten cap.

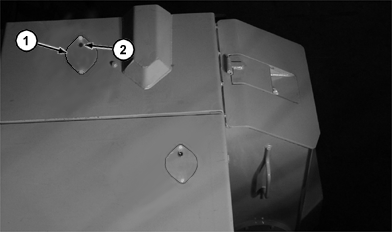

1-Cover
2-Radiator Cap

T6642EK
T128760

CED,OUOEBTW,289 -19-25FEB00-1/1
