Operating Shear Controls

A rocker switch (3) on top of the lift/tilt control lever controls the accumulator arm(s).

To open accumulator arm(s), press rocker switch to the left.

To close accumulator arm(s), press rocker switch to the right.

Pedal (2) opens shear blades and grapple arms.

Pedal (1) closes shear blades and grapple arms.

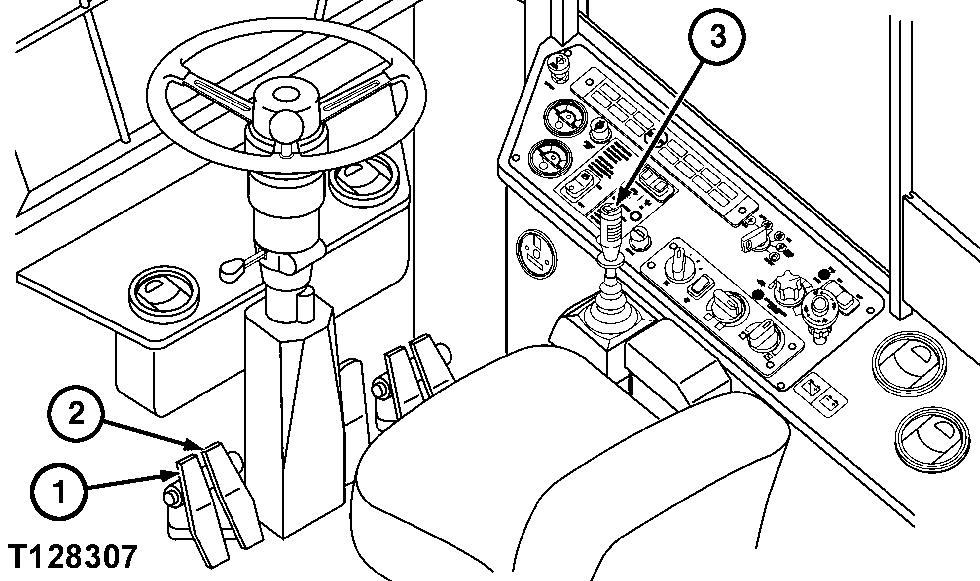

1-Shear Blade Close and Grapple Arm Close Pedal
2-Shear Blade Open and Grapple Arm Open Pedal
3-Accumulator Arm Rocker Switch
