Hydraulic System¹, Differential, Pump Drive Gearbox, Two-Speed Gearbox and Cab Tilt Pump Reservoir Oil

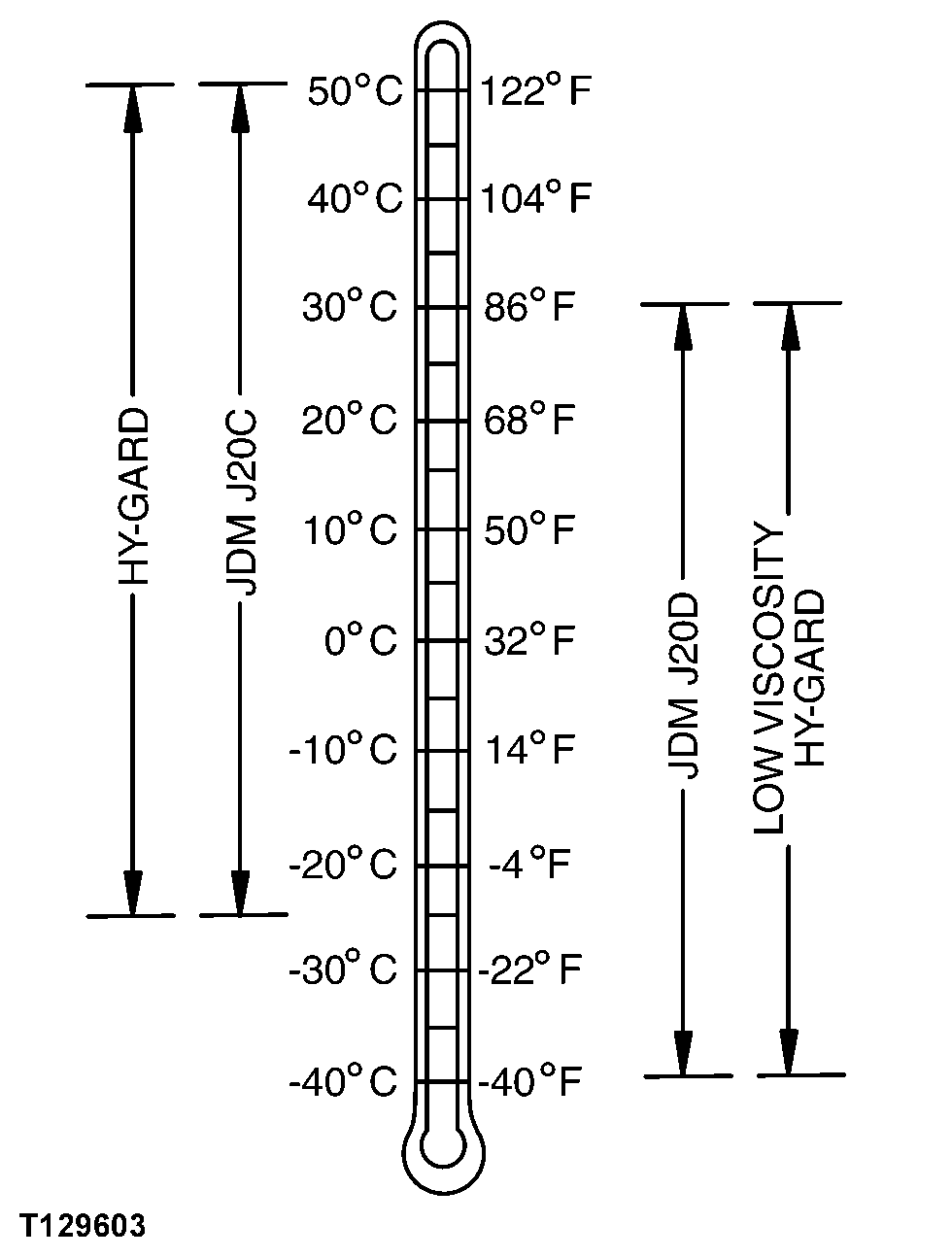

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

• John Deere HY-GARD ®
• John Deere Low Viscosity HY-GARD ®

Other oils may be used if they meet one of the following:

• John Deere Standard JDM J20C
• John Deere Standard JDM J20D

HY-GARD is a trademark of Deere & Company.

¹The hydraulic system tank supplies the oil for the steering system, the service brake system and the hydrostatic system.

CED,OUOEBTW,466 -19-29MAR00-1/1
