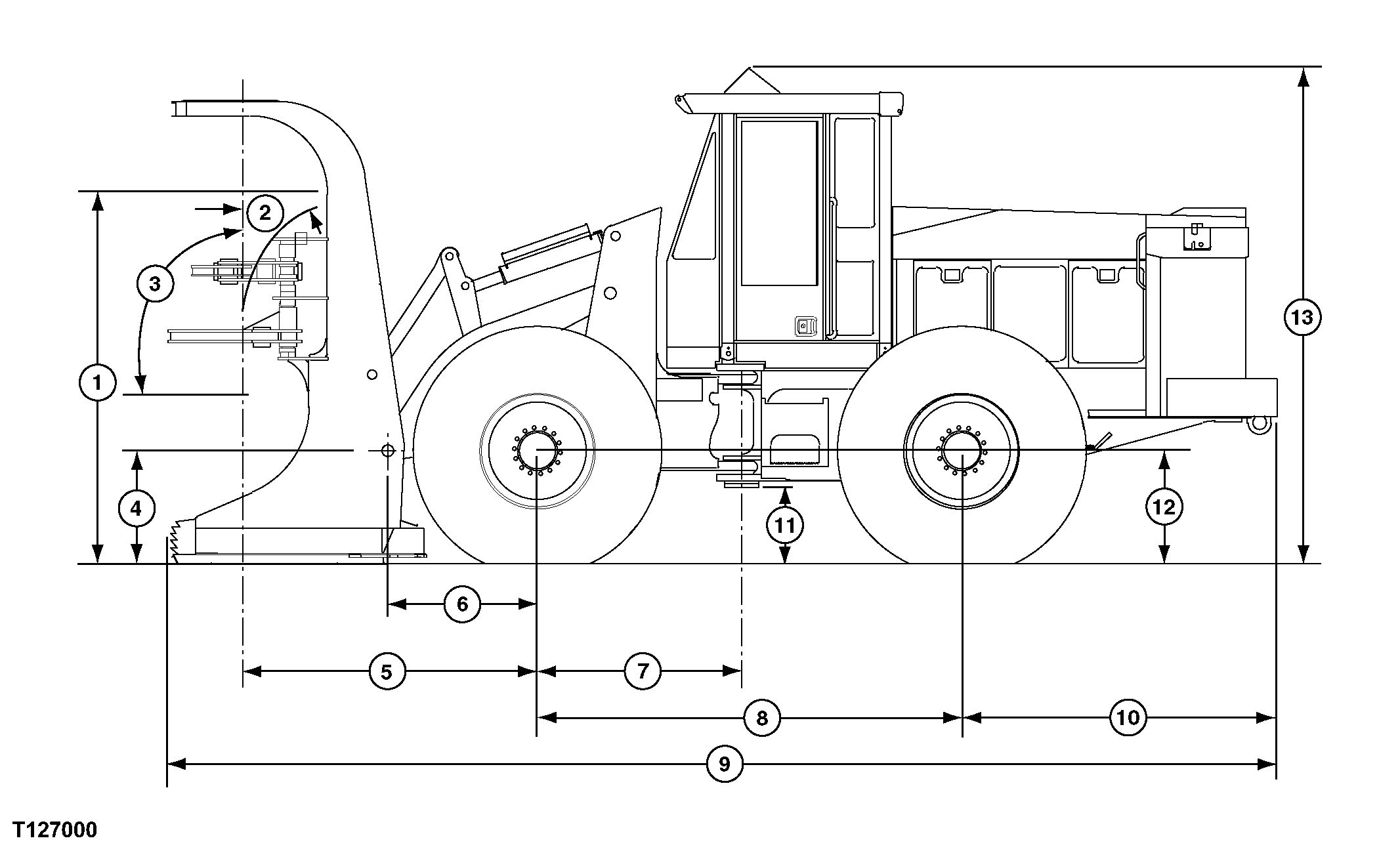

843H (Shown with Continuous Saw)
|
| Item | Measurement | Specification |
|---|---|---|
|
1-Maximum Height at Saw Head Attaching Pin |
Height | 2451 mm (96.5 in.) |
|
2-Saw Head Tilt Back at Ground Level |
Angle | 24° |
|
3-Saw Head Tilt Forward at Ground Level |
Angle | 60° |
|
4-Ground-to-Saw Head Attaching Pin |
Height | 743 mm (29.3 in.) |
|
5-Front Axle-to-20 in. Tree Centerline |
Distance | 1943 mm (76.5 in.) |
|
6-Saw Head Attaching Pin-to-Front Axle |
Distance | 993 mm (39.1 in.) |
|
7-Machine Articulation-to-Front Axle |
Distance | 1346 mm (53 in.) |
|
8-Wheel Base |
Distance | 2794 mm (110 in.) |
CED,OUOEBTW,497 -19-29MAR00-1/2 |
| Item | Measurement | Specification |
|---|---|---|
|
9-Overall Length |
Length | 7290 mm (287 in.) |
|
10-Rear Axle-to-Rear of Machine |
Distance | 2078 mm (81.1 in.) |
|
11-Ground Clearance |
Height | 508 mm (20 in.) |
|
12-Ground-to-Axle |
Height | 742 mm (29.2 in.) |
|
13-Overall Height |
Height | 3251 mm (128 in.) |
|
Feller-Buncher Width with 28L-26 LS2 Tires |
Width | 3048 mm (120 in.) |
|
Weight with Factory Installed (Cameco) Saw |
Weight | 14 640 kg (32,275 lb) |
|
NOTE: Specifications and design subject to change without notice. Wherever applicable, specifications are in accordance with ICED and SAE standards. Except where otherwise |
noted, specifications are based on a machine equipped with 28L-26, LS2 tires, full fuel tank, 80 kg (175 lb) operator and standard equipment. |
