Monthly Storage Procedure

causym CAUTION: Engine exhaust fumes can cause sickness or death. Start engine ONLY in a well-ventilated area.

1. Drain water and sediment from fuel tank when air temperature is above freezing.

2. Remove LPS 3 Rust Inhibitor from cylinder rods with a cleaning solvent.

T6191AA

TX,105,DY2109 -19-10JAN97-1/3

IMPORTANT: Prevent possible engine damage. During cold temperatures, check fluidity of engine oil on dipstick. If the oil appears waxy and/or jelly-like rather than liquid, DO NOT attempt to start engine. Use external heat source to warm the crankcase until oil appears fluid.

3. Check all fluid levels. If low, check for leaks and add oil as required.

4. Check belts.

5. Check condition of all hoses and connections.

6. Check electrolyte level. Charge and install battery.

7. Fill fuel tank.

T6181AU

TX,105,DY2109 -19-10JAN97-2/3

IMPORTANT: Before starting engine after a filter change, crank engine for 10 seconds without starting (fuel shut-off solenoid disconnected at plug), to refill filter element and pre-lubricate turbocharger.

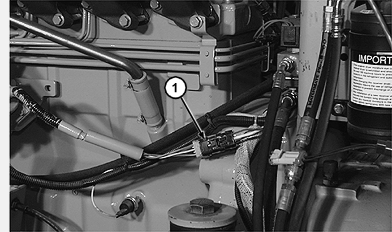

8. Disconnect fuel shut-off solenoid at plug (1) so engine will not start. Crank engine for 10 seconds using starter motor. Connect plug.

9. Bleed fuel system. If engine fails to start or runs poorly after starting, change fuel filter(s). Bleed fuel system again.

10. Operate all controls, levers, seat adjustments, etc.

11. Cycle all hydraulic functions several times. Check condition of all hoses and connections.

12. Check condition of tires.

T129651B


1-Plug

TX,105,DY2109 -19-10JAN97-3/3
