Check Pump Drive Gearbox Oil Level

1. Remove left side engine side shield.

2. Lift handle and remove dipstick (A). The pump drive gearbox is full when oil level is at the full area mark.

3. If necessary, add oil. (See Fuels and Lubricants chapter.)

4. Install dipstick.

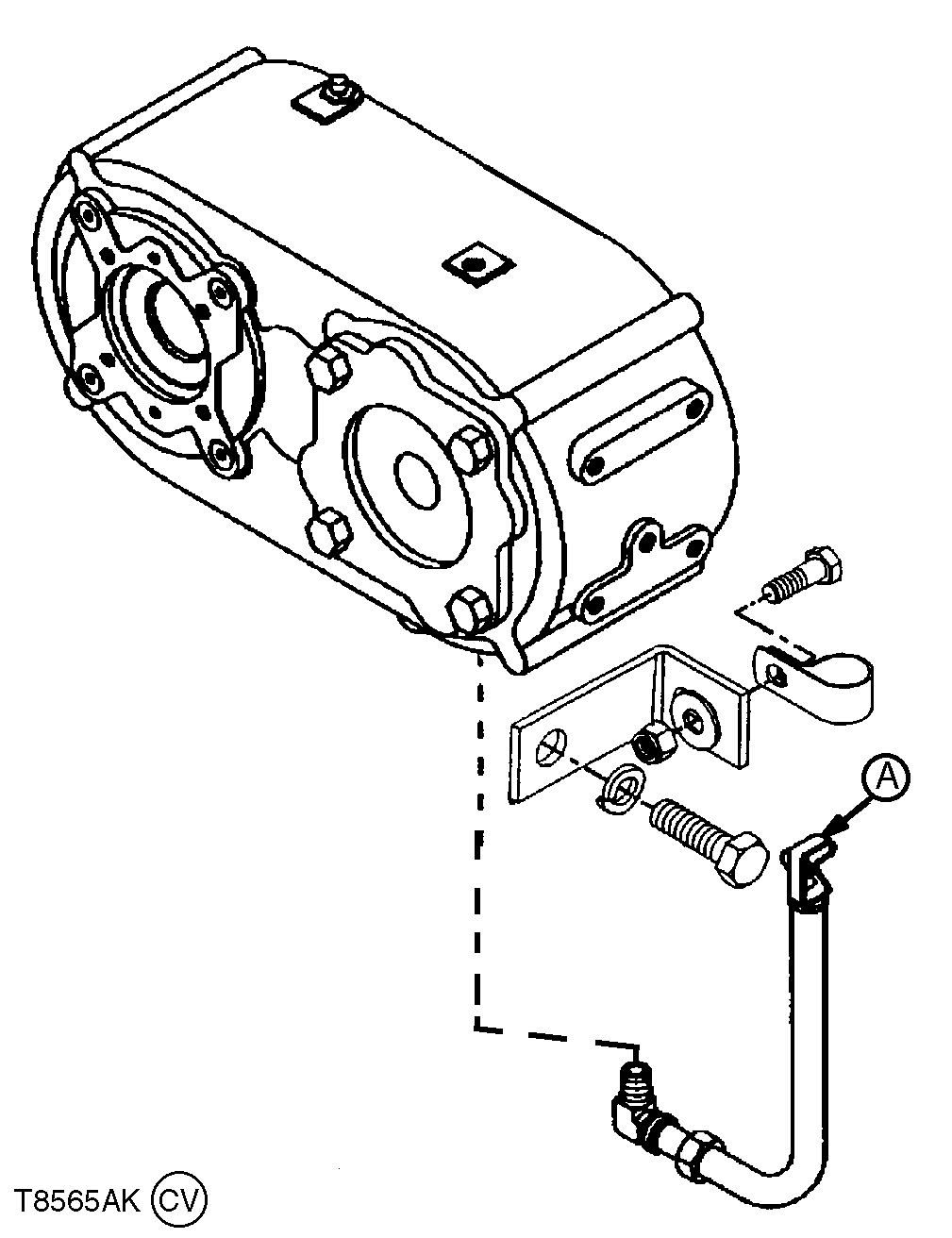

1-Pump Drive Gearbox Oil Dipstick

T8565AK

TX,80,DH3709 -19-29OCT96-1/1
