Fuel Shut-Off Solenoid Adjustment

1. With ignition key turned OFF, disconnect linkage (B) from fuel shut-off lever (C).

2. Hold shut-off lever against closed position stop.

3. Adjust linkage so linkage aligns with hole in shut-off lever and turn out two complete turns.

4. Start engine and make sure shut-off lever is tight against ON position stop (A).

NOTE: Failure to have the shut-off lever against ON position stop can result in low engine horsepower.

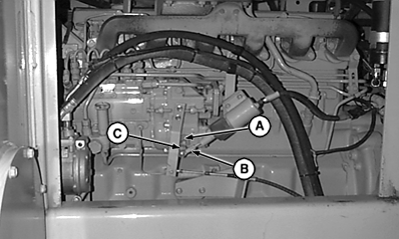

T103724


A-ON Position Stop
B-Linkage
C-Shut-Off Lever

TX,90,DY2092 -19-10JAN97-1/1
